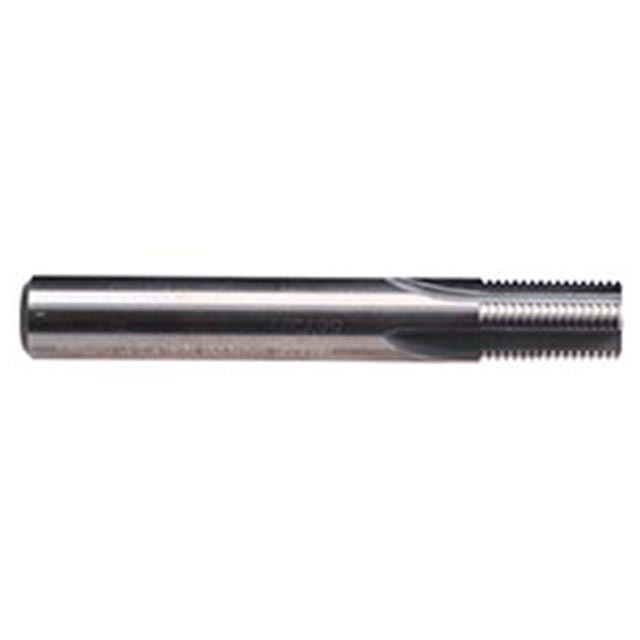

Features:
- For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Cutting Diameter (mm) | 19.6 mm |
| Coating/Finish | Bright |
| Material | Carbide |
| Pitch | 11 |
| Size | Rc 1" to 2 " |
| Thread Standard | BSPT |
| Type | GF-KEG - Pipe Threads |
| Coolant Fed | Axial |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 20 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 90 mm |
| Flute Length (mm) | 24.26 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
| Application | Full Profile |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
