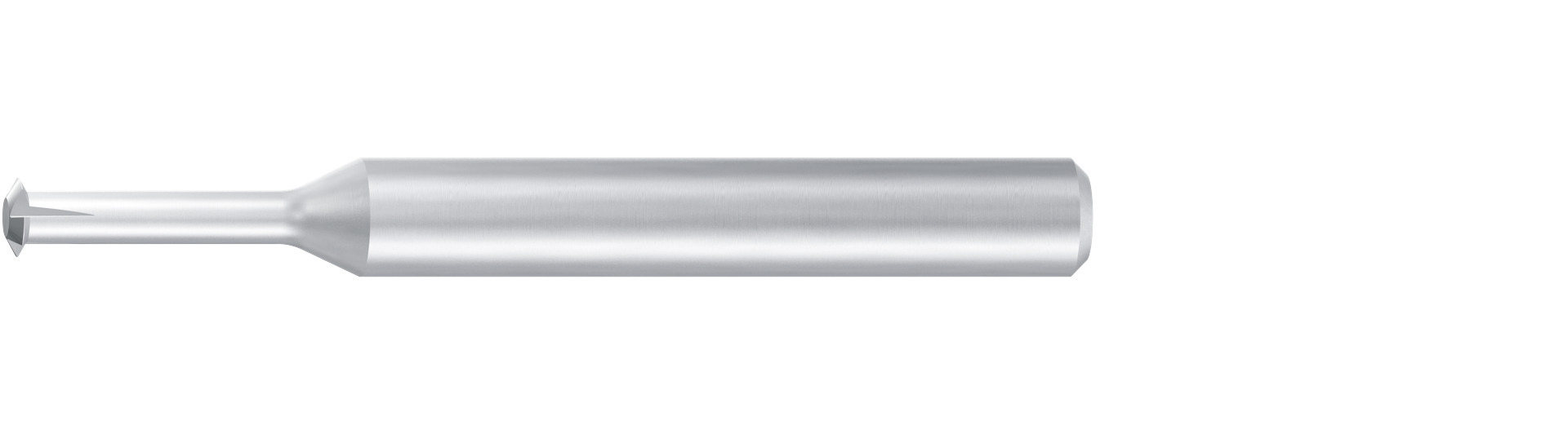

Features:
- Solid carbide circular thread mill with corrected thread profile
- Single plane thread mill for different thread sizes and pitches
Product Specifications
| Cutter Diameter (mm) | 1.04 mm |
| Pitch | 0.35 |
| Size | M 1.4-M 1.8 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Single Plane |
| Type | ZGF-THREADS-ALL |
| Length Group | 2 x D |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 3 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 39 mm |
| Flute Length (mm) | 3.5 mm |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
1.04mm
Shank Diameter (mm):
3.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
3.50mm
Number of Flutes:
2
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
THREADS-ALL
Application:
Thread Milling
Overall Length (mm):
39.00mm
interval quantity:
1
