Features:

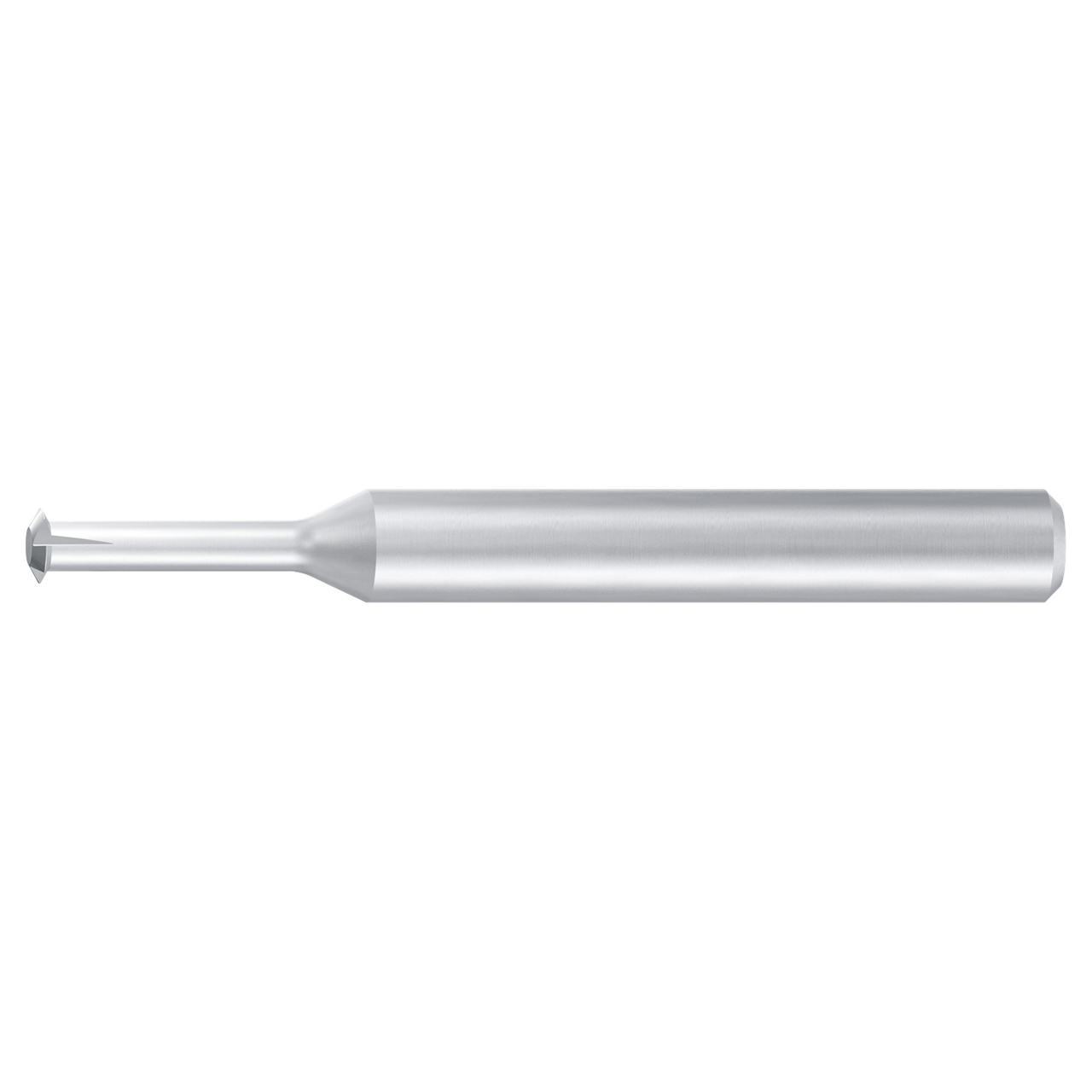

- Solid carbide circular thread mill with corrected thread profile
- Single plane thread mill for different thread sizes and pitches
Product Specifications
| Cutter Diameter (mm) | 2.78 mm |
| Pitch | 0.75 |
| Size | M 3.5-M 4.5 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Single Plane |
| Type | ZGF-THREADS-ALL |
| Length Group | 2 x D |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 4 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 42 mm |
| Flute Length (mm) | 9 mm |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
2.78mm
Shank Diameter (mm):
4.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
9.00mm
Thread Size:
M3.5 - M4.5 x 0.75
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
THREADS-ALL
Application:
Thread Milling
Overall Length (mm):
42.00mm
