Features:
- Solid carbide circular thread mill with left hand flute design for additional stability
- Three tooth design with roughing and finishing in a single profile
- Full bottoming threads to within 1 pitch
- For aerospace and exotic materials
Product Specifications

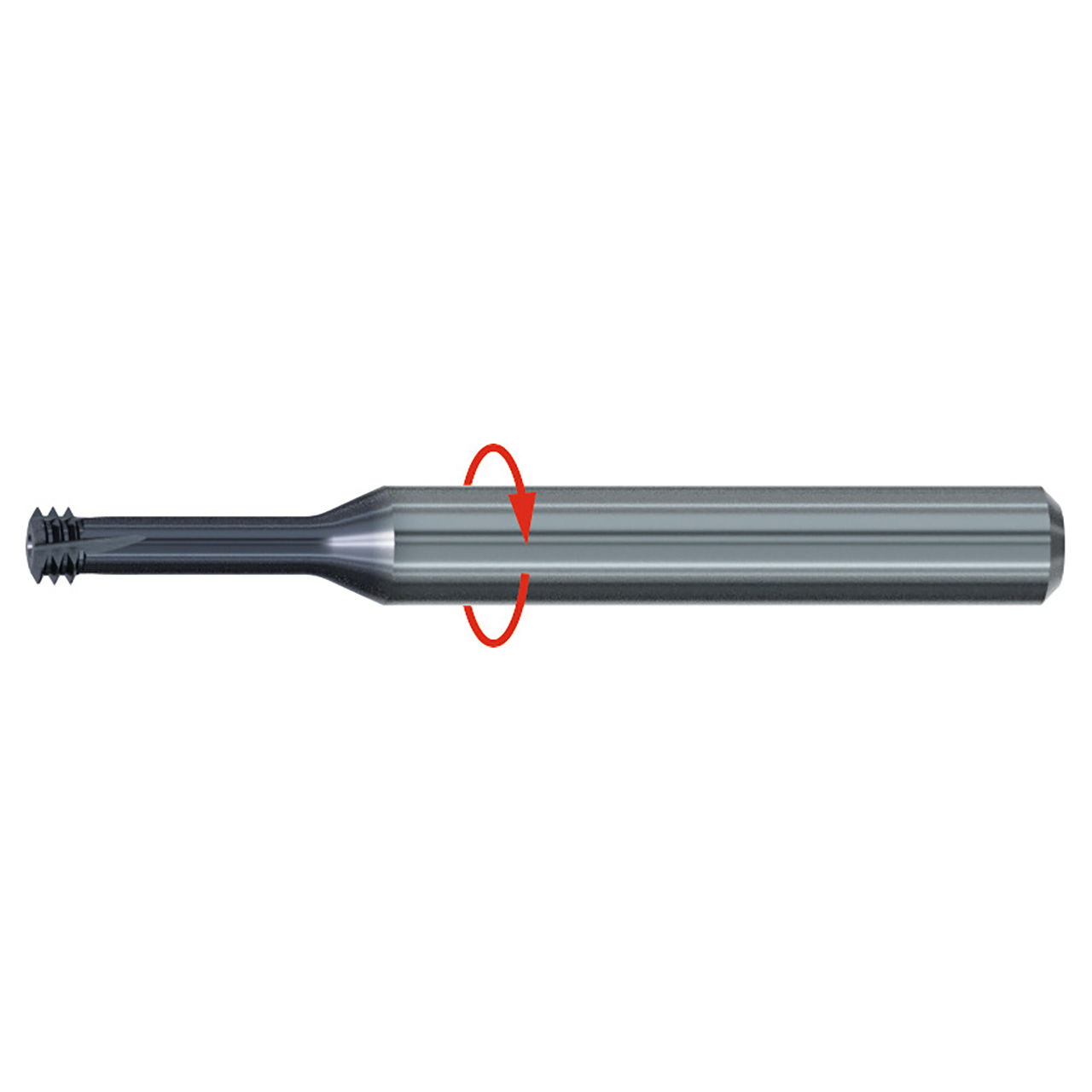

| Manufacturer Part Number | GF26A729.5711 |
| Cutting Diameter (Decimal Inch) | 0.190" |
| Cutting Diameter (mm) | 3.90mm |
| Thread Size | LK #10-32 |
| Thread Diameter Size | LK #10 |
| Thread Standard | LK-UNF |
| Thread per Inch (TPI) | 32 TPI |
| Overall Length (mm) | 42.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2xD |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 10 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiAlN-T46 |
| Tool Type | THREADS-ALL / AERO |
| Application | Thread Milling |
| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
3.90mm
Shank Diameter (mm):
4.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
10.84mm
Thread Size:
LK #10-32
Thread Standard:
LK-UNF
Threads per Inch (TPI):
32 TPI
Number of Flutes:
5
Flute Direction:
Left Hand
Finish/Coating:
TiAlN-T46
Tool Type:
THREADS-ALL / AERO
Application:
Thread Milling
Overall Length (mm):
42.00mm
