Features:

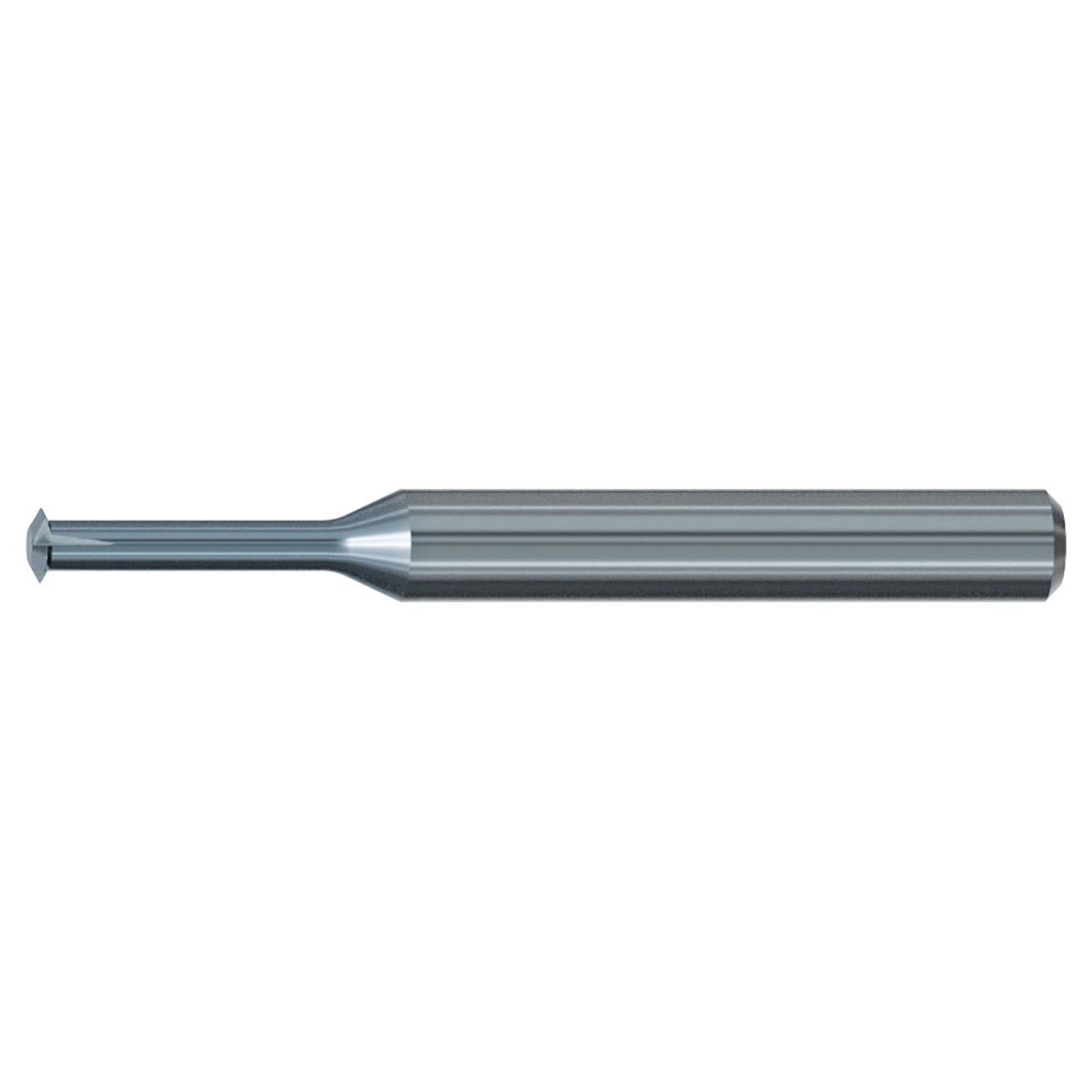

- Single plane solid carbide circular thread mill
- One tool can thread more than one thread size and pitch
- Full bottoming threads to within 1 pitch
- Eliminate the need for multiple tool holder pockets
Product Specifications
| Manufacturer Part Number | GF273706.5046 |
| Cutting Diameter (Decimal Inch) | 0.376" |
| Thread Size | 7/16"-20" |
| Thread Diameter Size (Inch) | 7/16" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 20 TPI |
| Neck Length (Decimal Inch) | 33.950" |
| Overall Length (Decimal Inch) | 3.031" |
| Flute Length (Decimal Inch) | 0.392" |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 3xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 5 |
| Cutting Edge Material | Carbide |
| Coating | TiCN |
| Tool Type | THREADS-ALL™ |
| Application | Thread Milling |
| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.3760"
Shank Diameter (mm):
10.00mm
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
1.3370"
Thread Standard:
UNF
Threads per Inch (TPI):
20 TPI
Number of Flutes:
5
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
THREADS-ALL
Application:
Thread Milling
Overall Length (Decimal Inch):
3.0310"
interval quantity:
1
