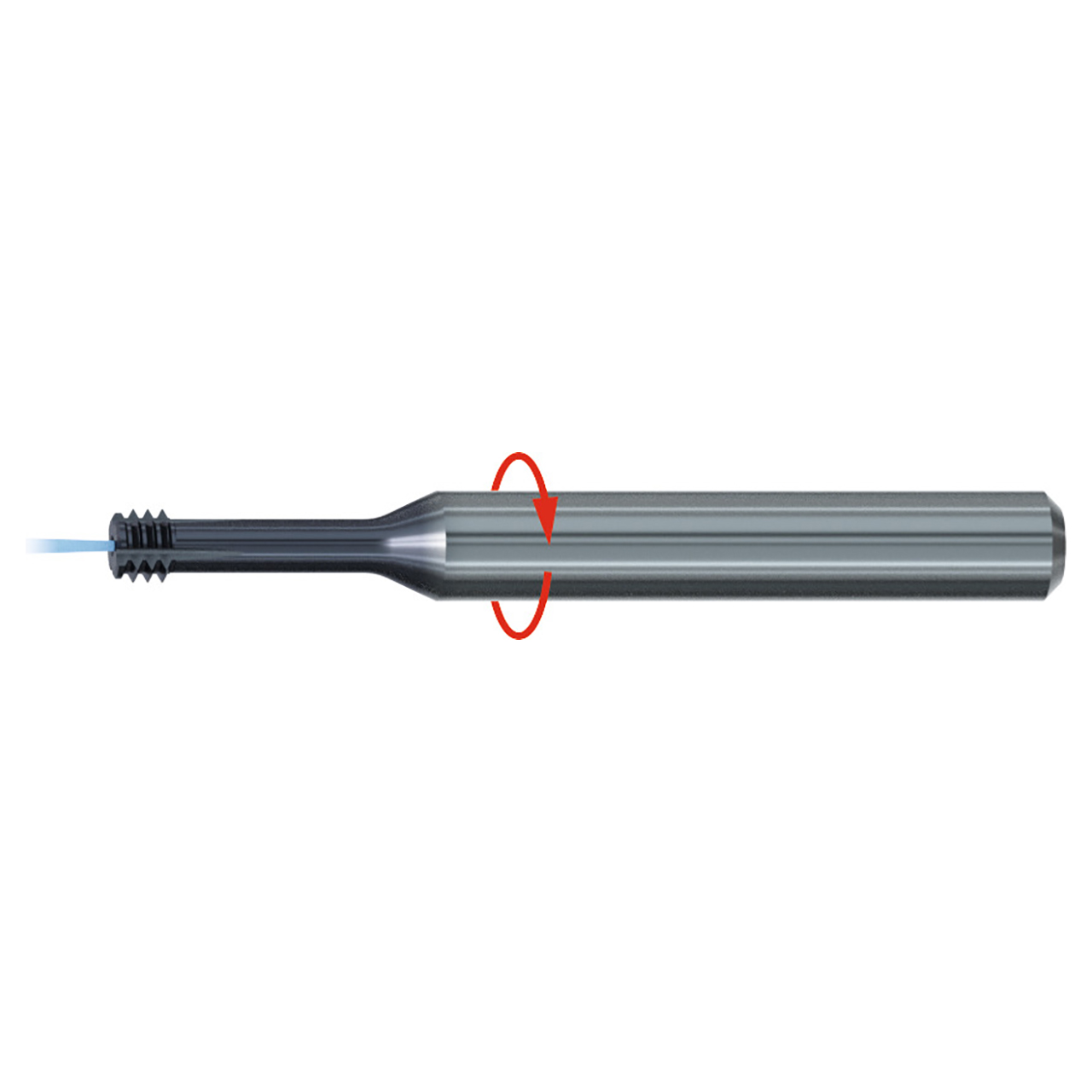

Emuge GF283729.5045 | 24 Thread Per Inch x 7.90mm Diameter x 60.00mm OAL 10 Degree Helix Angle 6 Flute TIALN-T46 Coated Thread Mill

$278.80 $273.22
(You save $5.58)
Brand:
Emuge
Cutting Diameter (mm):
7.90mm
Shank Diameter (mm):
8.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
20.60mm
Thread Standard:
UNF
Threads per Inch (TPI):
24 TPI
Number of Flutes:
6
Flute Direction:
Left Hand
Finish/Coating:
TiAlN-T46
Tool Type:
THREADS-ALL / MAX
Application:
Thread Milling
Overall Length (mm):
60.00mm
interval quantity:
1
SKU:
17985867
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Solid carbide circular thread mill with 4 rows of cutting teeth
  • Flute design for roughing and finishing in a single profile
  • TIALN-T46 coating for additional heat and wear resistance
  • For high tensile strength materials, 44 to 66 HRC

Product Specifications
Manufacturer Part NumberGF283729.5045
Cutting Diameter (mm)7.90mm
Thread Size3/8"-24"
Thread Diameter Size3/8
Thread StandardUNF
Thread per Inch (TPI)24 TPI
Overall Length (mm)60.00mm
Flute Length (mm)20.60mm
Dimensional StandardsASME B1.1
Shank Toleranceh6
Tool Cylindrical - Shank StyleCylindrical - HA
Shank StandardDIN 6535
Flute DirectionLeft Hand
Group Length2xD
Coolant Supply PropertyInternal
Coolant FedAxial
Number of Flute6
Flute Helix Angle (Degree)10 Degree
Cutting Edge MaterialCarbide
CoatingTIALN-T46
Tool TypeTHREADS-ALL / MAX
ApplicationThread Milling
Product TypeThread Mill
