Features:

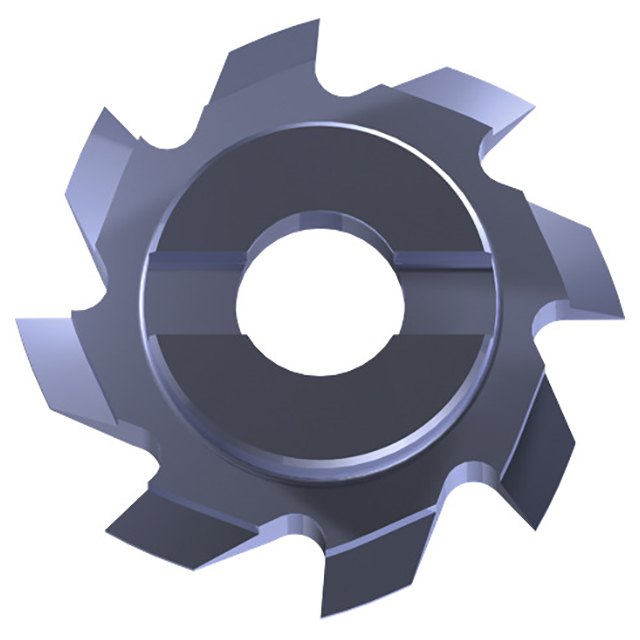

- ZIRK-GF one face insert for large diameter internal threading
- Circular carbide face inserts for internal threads
- One tool for multiple thread sizes and pitches Replaceable, economical insert design
Product Specifications
| Manufacturer Part Number | GF65310A.9512 |
| Cutting Diameter (mm) | 9.90mm |
| Thread Diameter Size | A |
| Thread Standard | UN/M/MF |
| Number of Flute | 6 |
| Cutting Edge Material | Carbide |
| Coating | ALCR-T42 |
| Tool Type | ZIRK-GF Insert |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Standard:
UN/M/MF
Pitch:
24-13 (1-1.75)
Finish/Coating:
ALCR-T42
interval quantity:
1
