Features:

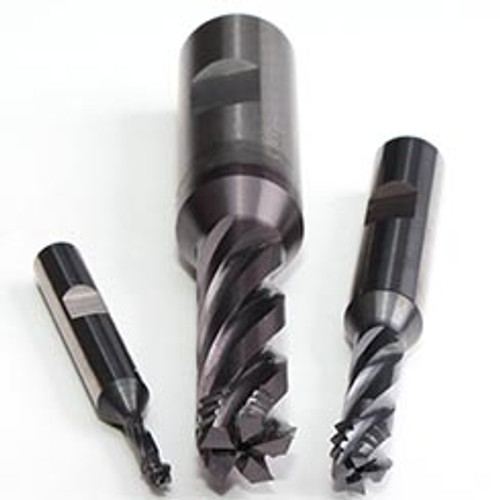

- Solid carbide circular thread mill for most materials up to 44 HRC
- Premium sub-micro grain carbide tool for internal threads Drill and thread with one tool Coolant fed for enhanced chip evacuation
Product Specifications
| Cutter Diameter (mm) | 4.5 mm |
| Pitch | 1 |
| Size | M 6 or M 7 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Drill and Thread Mill |
| Type | ZBGF-W |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Finish/Coating | TIALN-T4 |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 8 mm |
| Dimension Standards | DIN 13 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 60 mm |
| Flute Length (mm) | 4.6 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
4.50mm
Shank Diameter (mm):
8.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
4.60mm
Thread Size:
M 6 or M 7 x 1
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiAlN-T4
Tool Type:
THRILLER - W
Overall Length (mm):
60.00mm
interval quantity:
1
