Features:

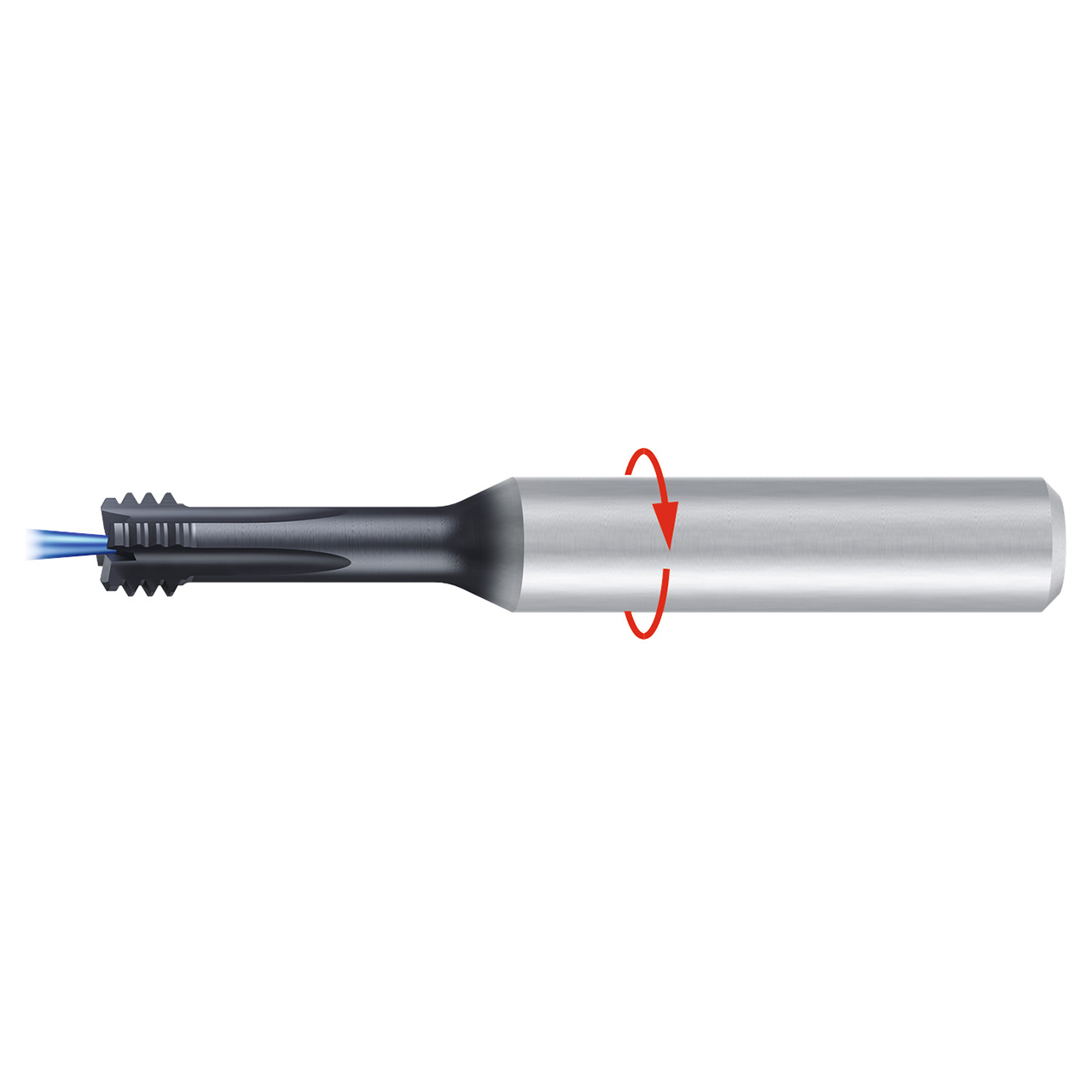

- Solid carbide circular thread mill with 4 rows of cutting teeth
- Flute design for drilling, roughing and finishing in a single profile
- TIALN-T46 coating for additional heat and wear resistance
- For high tensile strength materials, 44 to 66 HRC
Product Specifications
| Manufacturer Part Number | GF74370B.5009 |
| Cutting Diameter (mm) | 4.50mm |
| Thread Size | 1/4"-20" |
| Thread Diameter Size | 1/4 |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 20 TPI |
| Thread Length (mm) | 3.70mm |
| Overall Length (mm) | 60.00mm |
| Flute Length (mm) | 17.80mm |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2.5xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 10 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR-89 |
| Tool Type | THRILLER / MAX |
| Application | Drill & Thread Mill |
| Product Type | Thread Milling Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
4.50mm
Shank Diameter (mm):
6.00mm
Cutting Edge Material:
Carbide
Thread Length (mm):
3.70mm
Flute Length (mm):
17.80mm
Thread Standard:
UNC
Threads per Inch (TPI):
20 TPI
Number of Flutes:
3
Flute Direction:
Left Hand
Finish/Coating:
ALCR-89
Tool Type:
THRILLER / MAX
Overall Length (mm):
60.00mm
