Features:

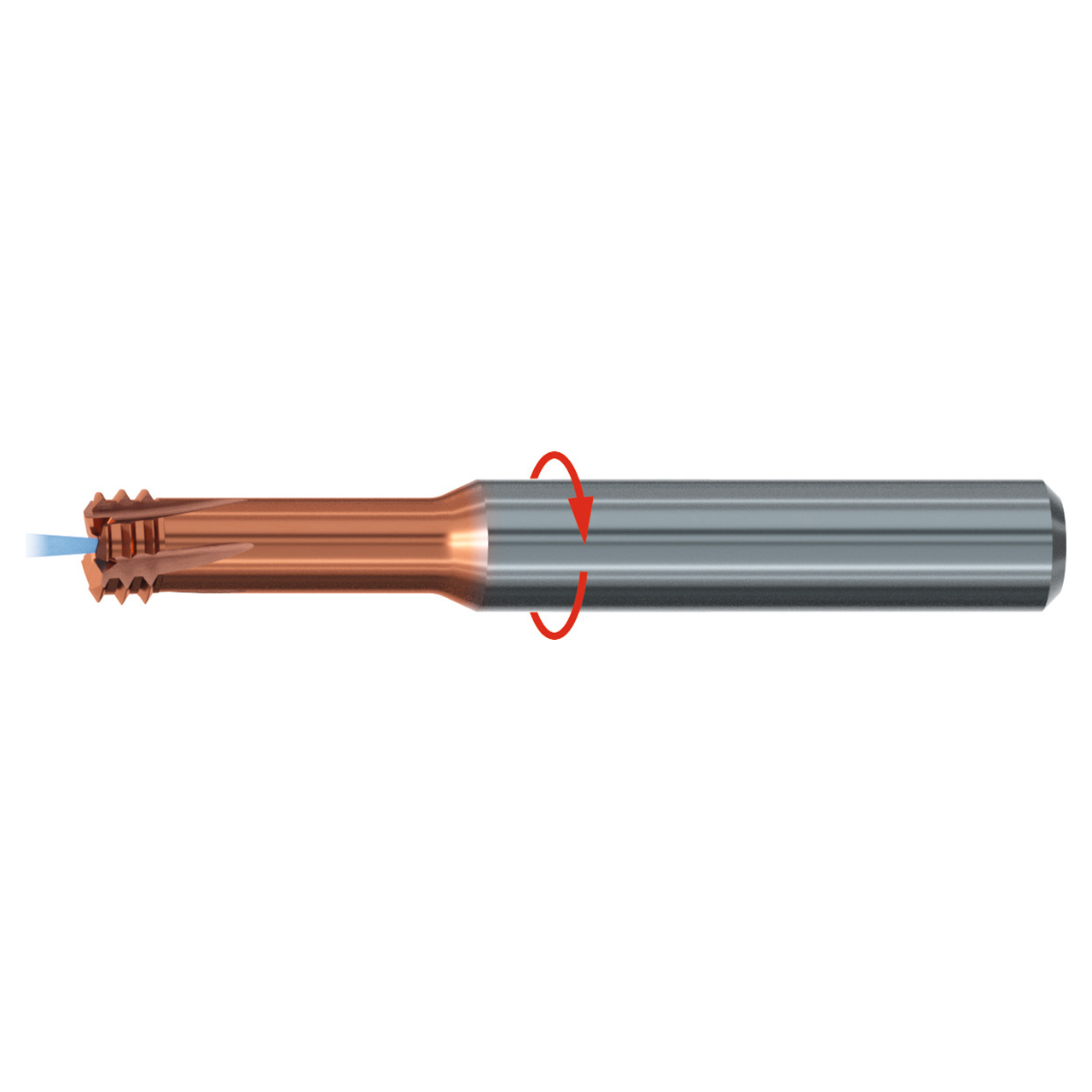

- Solid carbide circular thread mill with left hand flute design for additional stability
- Three tooth design with drilling, roughing and finishing in a single profile
- Full bottoming threads to within 1 pitch
- For aerospace and exotic materials
Product Specifications
| Manufacturer Part Number | GF7B682B.5005 |
| Cutting Diameter (mm) | 2.45mm |
| Thread Size | #6-32 |
| Thread Diameter Size | #6 |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 32 TPI |
| Thread Length (mm) | 2.30mm |
| Overall Length (mm) | 39.00mm |
| Flute Length (mm) | 8.20mm |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 10 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR-89 |
| Tool Type | THRILLER / AERO |
| Application | Drill & Thread Mill |
| Product Type | Thread Milling Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
2.45mm
Shank Diameter (mm):
3.00mm
Cutting Edge Material:
Carbide
Thread Length (mm):
2.30mm
Flute Length (mm):
8.20mm
Thread Size:
#6-32
Thread Standard:
UNC
Threads per Inch (TPI):
32 TPI
Number of Flutes:
3
Flute Direction:
Left Hand
Finish/Coating:
ALCR-89
Tool Type:
THRILLER / AERO
Overall Length (mm):
39.00mm
