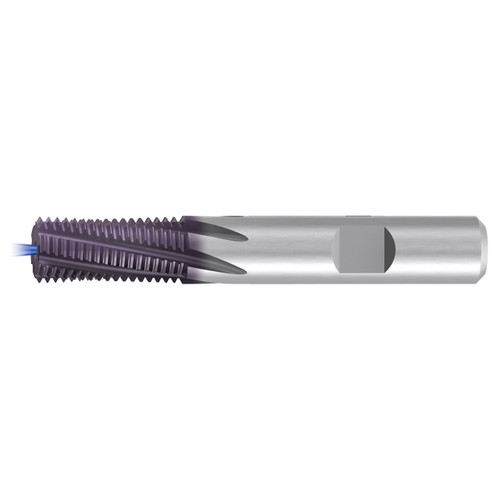

Emuge GFB35106.5043 | UNF 1/4" - 28 Thread Size x 6.00mm Shank x 2.280" OAL x 15 Degree Helix Angle 4 Flute TICN Coated Carbide Thread Mill

+ MORE

Emuge GFB35106.5043 | UNF 1/4" - 28 Thread Size x 6.00mm Shank x 2.280" OAL x 15 Degree Helix Angle 4 Flute TICN Coated Carbide Thread Mill

Name: Emuge GFB35106.5043 | UNF 1/4" - 28 Thread Size x 6.00mm Shank x 2.280" OAL x 15 Degree Helix Angle 4 Flute TICN Coated Carbide Thread Mill
Brand: Emuge
SKU: 23143668
Price: 583.36 USD
Availability: InStock

SKU: 23143668 Weight: 0.04 LBS Minimum Purchase: 1 unit

UPC:

$595.27 $583.36

(You save $11.91)

Total Price: $583.36

Quantity:

Shipping: Calculated at Checkout

About This Item

Features:

Optimized cutting geometry for production of internal threads with an increased flute count
Tool for different thread sizes but one pitch only Increased flute count for reduced cutting pressure

Product Specifications

Cutter Diameter (Inch)	0.203"
Pitch	28
Size	≥ 1/4"
Thread Standard	UNF
Applicable Material	Steel, Stainless Steel, Cast Iron, Aluminum, Titanium
Application	Full Profile
Type	GF-Vario-Z
Length Group	Standard
Coolant Fed	Axial
Finish/Coating	TICN
Material	Carbide
Number of Flutes	4
Helix Angle (Degrees)	15 Degree
Shank Diameter (mm)	6 mm
Dimension Standards	ASME B1.1
Shank Tolerance	h6
Shank Style	HB
Overall Length (Inch)	2.28"
Flute Spiral Direction	Right Hand, Left Hand
