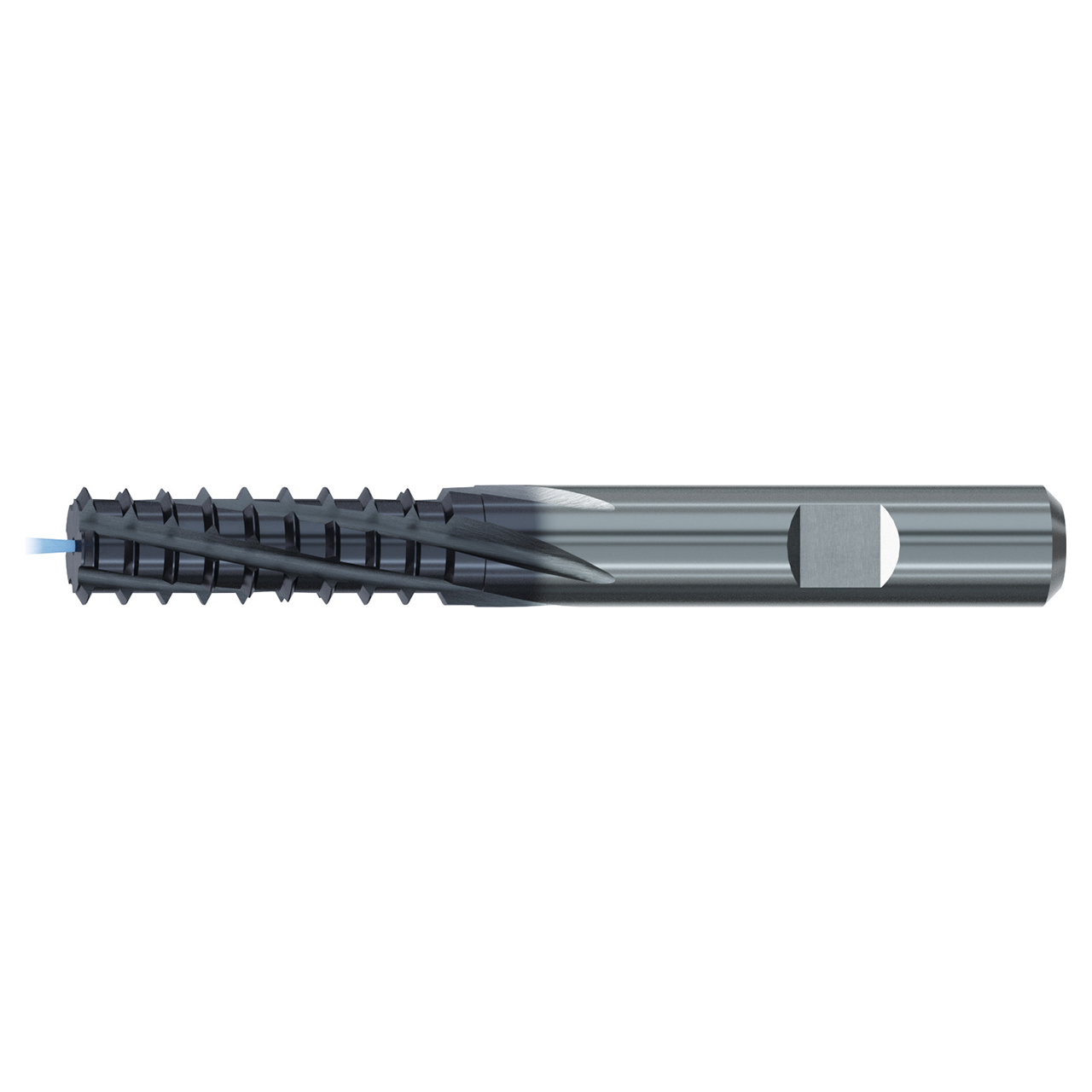

Features:
- For economical production of internal threads in a wide range of materials
- Alternating tooth rows reduce axial force
- Longer tool life when compared to traditional flute designs
- Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile
Product Specifications
Manufacturer Part Number | GFB4513C.5012 |
Cutting Diameter (mm) | 9.00mm |
Thread Size | ≥7/16 -14 |
Thread Diameter Size | ≥7/16 |
Thread Standard | UNC |
Thread per Inch (TPI) | 14 TPI |
Overall Length (mm) | 82.00mm |
Flute Length (mm) | 28.10mm |
Dimensional Standards | ASME B1.1 |
Shank Tolerance | h6 |
Tool Cylindrical - Shank Style | Weldon Flat - HB |
Shank Standard | DIN 6535 |
Flute Direction | Right Hand |
Group Length | 2.5xD |
Coolant Supply Property | Internal |
Coolant Fed | Axial |
Number of Flute | 5 |
Flute Helix Angle (Degree) | 15 Degree |
Cutting Edge Material | Carbide |
Coating | TIALN-86 |
Tool Type | VARIO - Skip Tooth |
Application | Thread Milling |
Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
