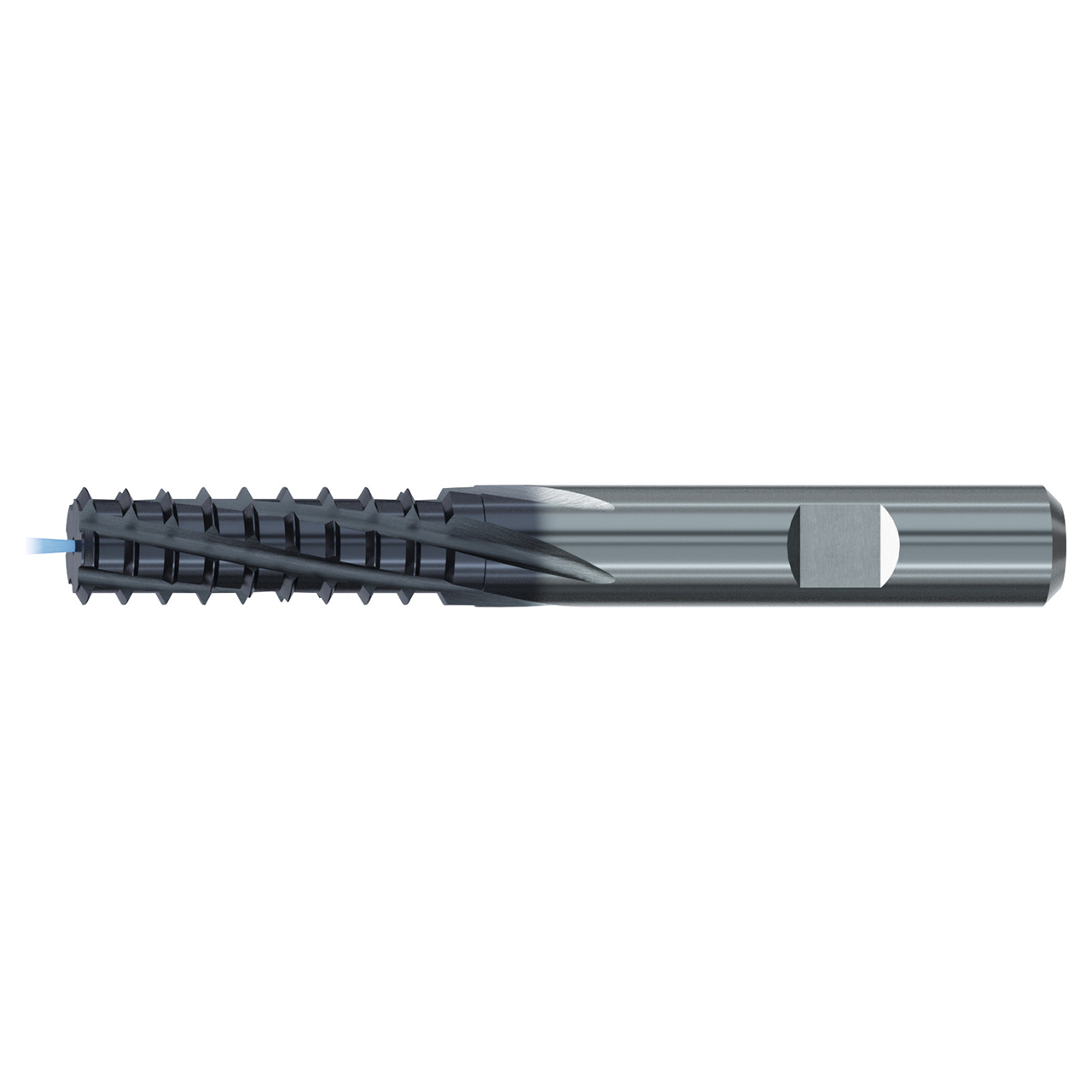

Emuge GFB4513C.5042 | 28 Thread Per Inch x 4.45mm Diameter x 60.00mm OAL 15 Degree Helix Angle 4 Flute TIALN-86 Coated Thread Mill

$360.95
Brand:
Emuge
interval quantity:
1
SKU:
17987192
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Alternating tooth rows reduce axial force
  • Longer tool life when compared to traditional flute designs
  • Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile
  • Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile

Product Specifications
Manufacturer Part NumberGFB4513C.5042
Cutting Diameter (mm)4.45mm
Thread Size≥#12-28
Thread Diameter Size≥#12
Thread StandardUNF
Thread per Inch (TPI)28 TPI
Overall Length (mm)60.00mm
Flute Length (mm)14.10mm
Dimensional StandardsASME B1.1
Shank Toleranceh6
Tool Cylindrical - Shank StyleWeldon Flat - HB
Shank StandardDIN 6535
Flute DirectionRight Hand
Group Length2.5xD
Coolant Supply PropertyInternal
Coolant FedAxial
Number of Flute4
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialCarbide
CoatingTIALN-86
Tool TypeVARIO-Skip Tooth
ApplicationThread Milling
Product TypeThread Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
