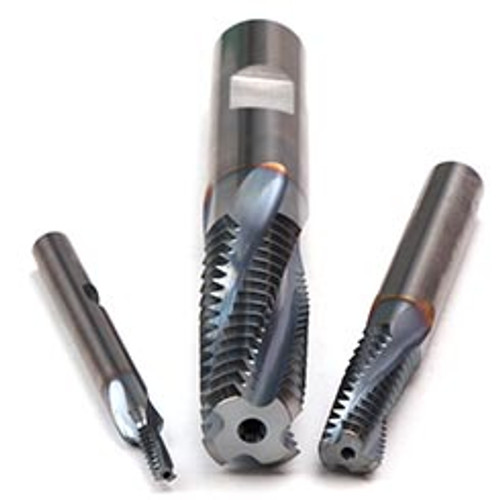

Features:
- Full profile cutter for the production of internal threads and external threads
- Tool for different thread sizes but one pitch only with correct thread profile Coolant fed with optimized cutting geometry for maxiumum material removal
Product Specifications
| Cutter Diameter (Inch) | 0.309" |
| Pitch | 1.5 |
| Size | M 10 |
| Thread Standard | M |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GFI / SHUR-THREAD |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Finish/Coating | TiCN |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (Inch) | 5/16" |
| Dimension Standards | DIN 13 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (Inch) | 2.5" |
| Flute Length (Inch) | 0.796" |
| Flute Spiral Direction | Right Hand, Left Hand |
