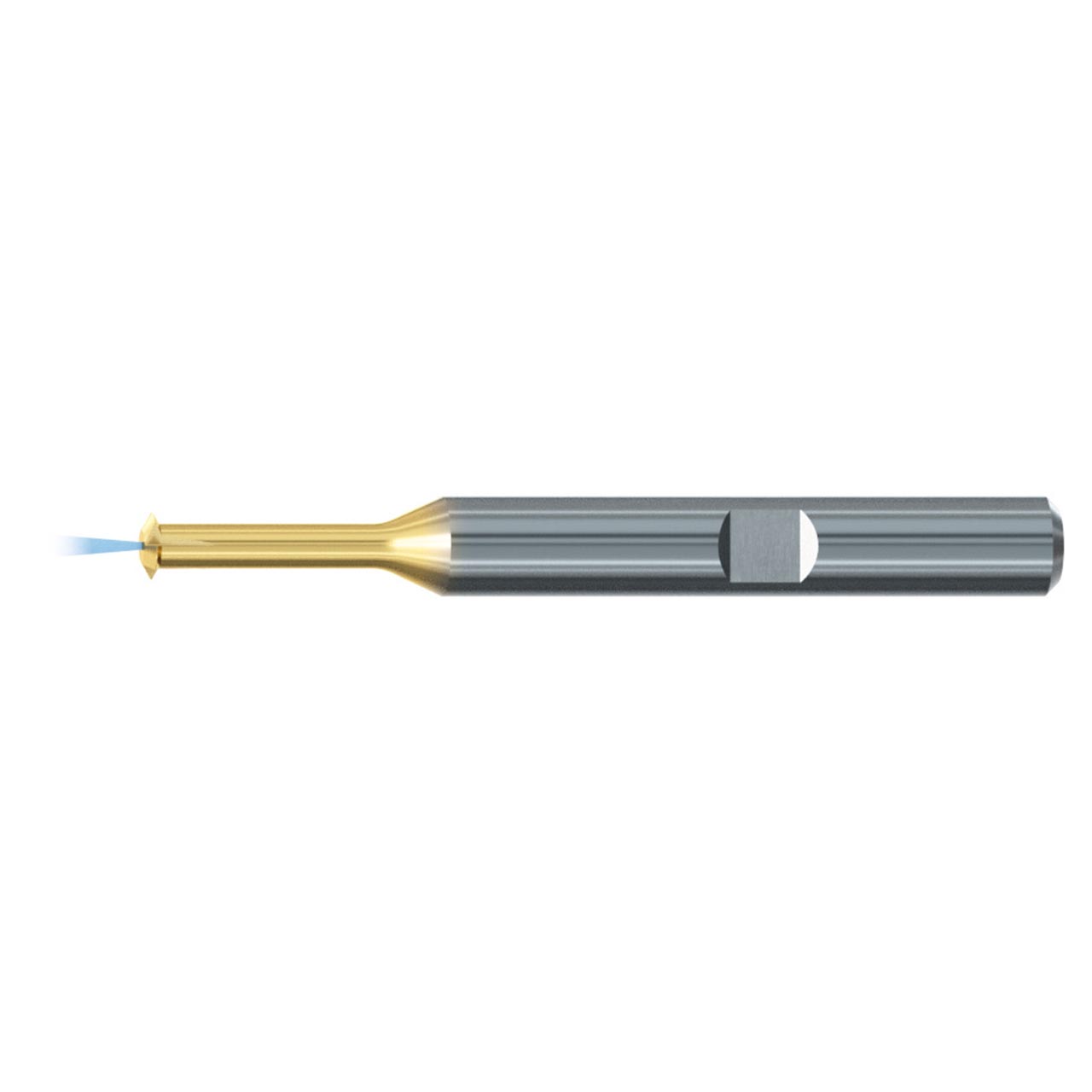

Emuge GFS33105.5010 | UNC/UNF 5/16" - 18, 24 Thread Size x 1/4" Shank x 0.625" Flute Length x 2-1/2" OAL 4 Flute TIN-T21 Coated Carbide Thread Mill

Emuge GFS33105.5010 | UNC/UNF 5/16" - 18, 24 Thread Size x 1/4" Shank x 0.625" Flute Length x 2-1/2" OAL 4 Flute TIN-T21 Coated Carbide Thread Mill

SKU: 15046434 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$242.01 $229.91
(You save $12.10)
Shipping: Calculated at Checkout

About This Item

Features:

  • Solid carbide circular thread mill for a wide range of materials
  • Optimized coolant fed cutting geometry that works well in a job shop enviroment with multiple materials

Product Specifications
Cutter Diameter (mm)0.242"
Pitch18, 24
Size5/16"
Thread StandardUNC/UNF
Applicable MaterialUniversal
ApplicationSingle Plane
TypeMULTI-THREAD MILL
Length Group2 x D
Coolant FedAxial
Coating/FinishTIN-T21
MaterialCarbide
Number of Flutes4
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)1/4"
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)2-1/2"
Flute Length (mm)0.625"
Flute DirectionRight Hand, Left Hand
