Features:

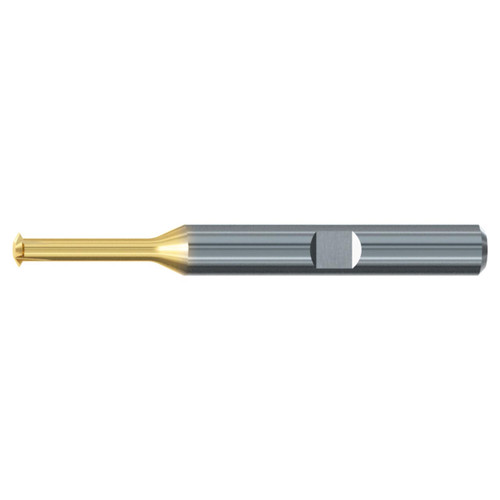

- Solid carbide single plane thread mill for internal threads in a wide range of materials
- Different thread sizes and pitches can be produced with a single tool TICN coating for added wear resistance
Product Specifications
| Cutter Diameter (Inch) | 0.409" |
| Pitch | 13, 20 |
| Size | 1/2" |
| Thread Standard | UNC/UNF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Single Plane |
| Type | ZGF-I /THREADS-ALL |
| Length Group | 3 x D |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (Inch) | 1/2" |
| Dimension Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (Inch) | 3.625" |
| Flute Length (Inch) | 1.50" |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.4090"
Shank Diameter (Inch):
1/2"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
1.5000"
Thread Size:
1/2-13, 20
Threads per Inch (TPI):
13, 20
Number of Flutes:
5
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
THREADS-ALL
Application:
Thread Milling
Overall Length (Decimal Inch):
3.6250"
