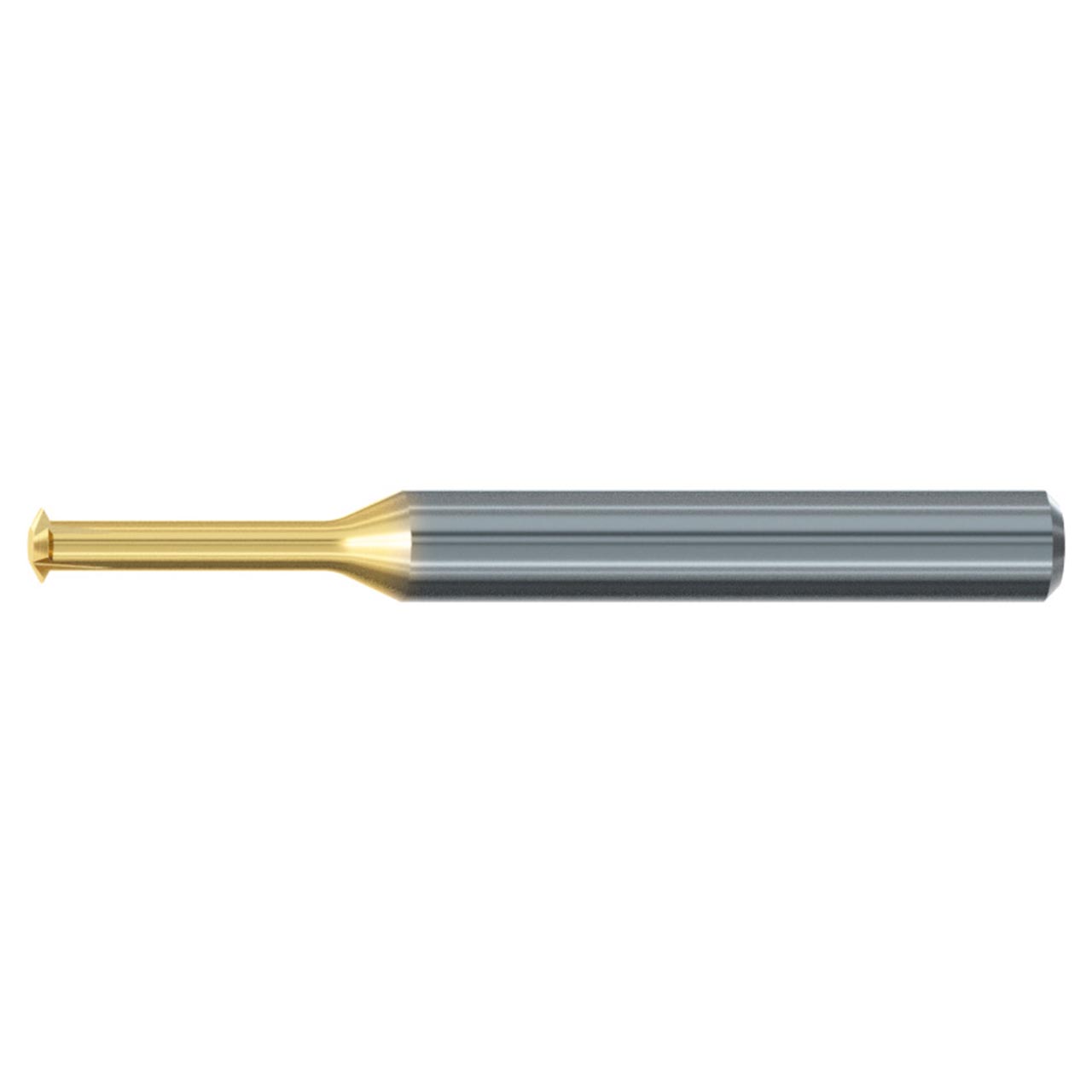

Emuge GFS83705.5041 | UNF #10 - 32 Thread Size x 3/16" Shank x 0.570" Flute Length x 1.875" OAL 4 Flute TIN-T21 Coated Carbide Thread Mill

Emuge GFS83705.5041 | UNF #10 - 32 Thread Size x 3/16" Shank x 0.570" Flute Length x 1.875" OAL 4 Flute TIN-T21 Coated Carbide Thread Mill

SKU: 15046456 Weight: 0.04 LBS Minimum Purchase: 1 unit
UPC:
$244.73 $232.49
(You save $12.24)
Shipping: Calculated at Checkout

About This Item

Features:

  • Solid carbide circular thread mill for a wide range of materials
  • Optimized cutting geometry that works well in a job shop enviroment with multiple materials

Product Specifications
Cutter Diameter (mm).154"
Pitch32
Size10
Thread StandardUNF
Applicable MaterialUniversal
ApplicationSingle Plane
TypeMULTI-THREAD MILL
Length Group3 x D
Coolant FedNo
Coating/FinishTIN-T21
MaterialCarbide
Number of Flutes4
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)3/16"
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)1.875"
Flute Length (mm)0.570"
Flute DirectionRight Hand, Left Hand
