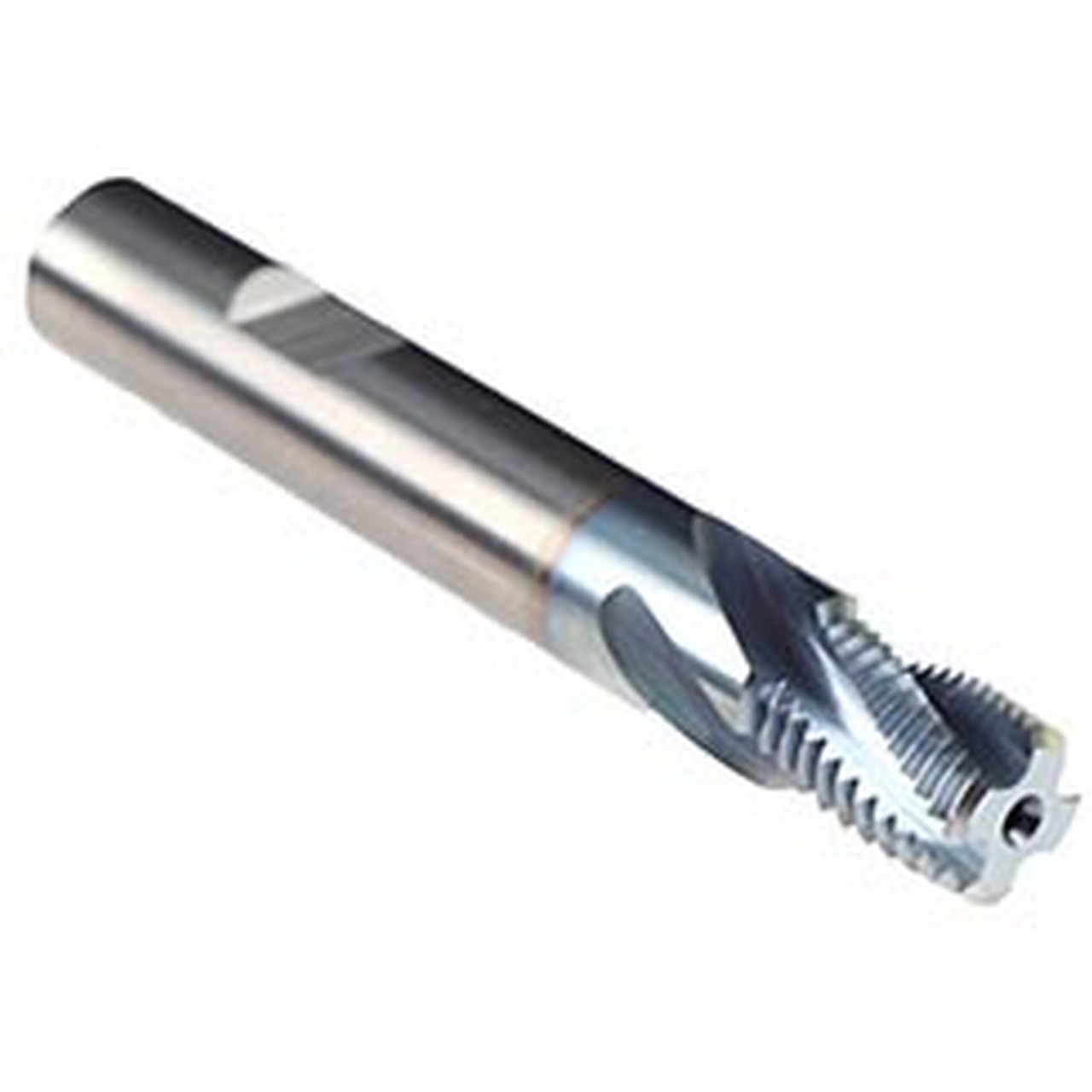

Emuge GFT9B806.9681 | 0.400" Diameter x 5/16" Shank x 2-1/4" OAL x 4 Flutes TICN Coating Carbide Multi-Thread Mill

$187.80 $178.41
(You save $9.39)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.4000"
Shank Diameter (Inch):
5/16"
Cutting Edge Material:
Carbide
Thread Length (Decimal Inch):
0.5360"
Flute Length (Decimal Inch):
0.5360"
Thread Size:
1/16 - 1/8-27
Thread Standard:
NPTF
Threads per Inch (TPI):
27 TPI
Number of Flutes:
4
Flute Direction:
Left Hand
Finish/Coating:
TiCN
Tool Type:
MULTI-THREAD MILL
Application:
Thread Milling
Overall Length (Inch):
2-1/4"
interval quantity:
1
SKU:
25212378
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • For economical production of internal pipe threads in a wide range of materials
  • Optimized cutting geometry that works well in a job shop enviroment with multiple materials

Product Specifications
EDP NumberGFT9B806.9681
Pitch (Inch)27"
Size1/16 - 1/8
Applicable MaterialUniversal Materials
ApplicationFull Profile
TypeMulti-Thread Mill
CoatingTICN
MaterialCarbide
Flutes4
Flute / Helix Angle15 Degree
Shank (Inch)5/16"
Shank Toleranceh6
Shank StyleHA
Overall Length (Inch)2 1/4"
Flute Length (Inch)0.536"
Flute DirectionLeft Hand
