Features:

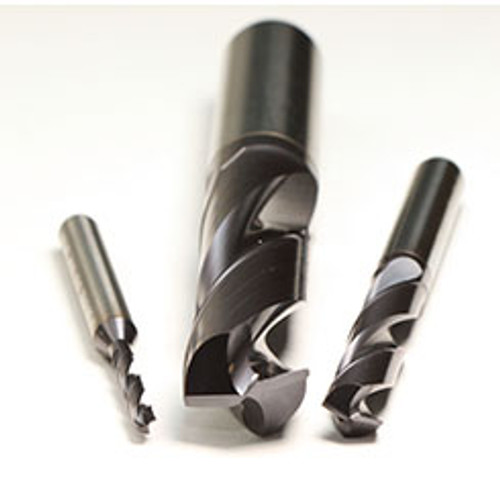

- High penetration rate carbide drill. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Decimal Size (Inch) | 0.1772 |
| Point Angle | 140 Degree |
| Size | 4.5 mm |
| Applicable Material | Steel, Alloyed Steel, Nickel Alloys, Cast Iron |
| Application | High Penetration Rate Drill |
| Type | EF-Drill |
| Length Group | 3 x D |
| Coolant Fed | No |
| Finish/Coating | TiAlN-TA14 |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 6 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 66 mm |
| Flute Length (mm) | 24 mm |
| Flute Spiral Direction | Right Hand |
