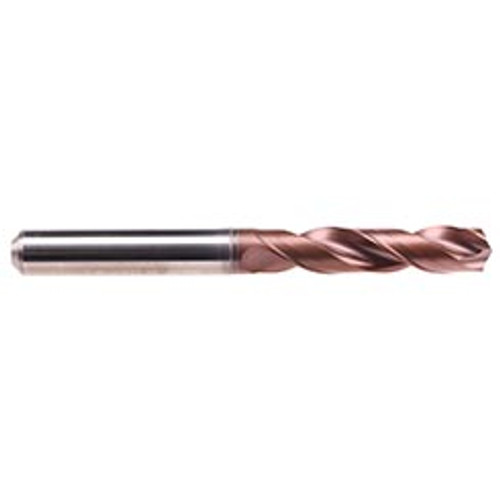

Features:
| Decimal Size (Inch) | 0.3681 |
| Pitch | 56, 64 |
| Point Angle | 140 Degree |
| Size | 9.35 mm |
| Thread Standard | UNC/UNF/M |
| Applicable Material | Stainless Steel & Titanium Alloys |
| Application | High Penetration Rate Drill |
| Type | EF-VA Drill |
| Length Group | 3 x D |
| Coolant Fed | Yes |
| Finish/Coating | AlCrN-T37 |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 10 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 89 mm |
| Flute Length (mm) | 47 mm |
| Flute Spiral Direction | Right Hand |
