Features:

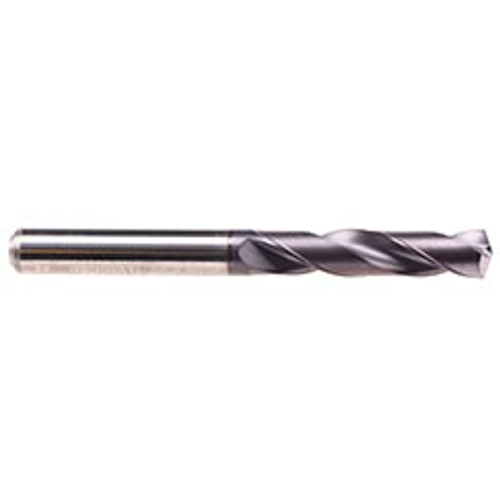

- High penetration rate carbide drill for stainless steel & titanium alloys. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Decimal Size (Inch) | 0.4469 |
| Pitch | 27 |
| Point Angle | 140 Degree |
| Size | 11.35 mm |
| Thread Standard | NPTF |
| Applicable Material | Stainless Steel & Titanium Alloys |
| Application | High Penetration Rate Drill |
| Type | EF-VA Drill |
| Length Group | 3 x D |
| Coolant Fed | Yes |
| Finish/Coating | AlCrN-T37 |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 102 mm |
| Flute Length (mm) | 55 mm |
| Flute Spiral Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Drill Bit Size (Inch):
29/64"
Drill Bit Size (Decimal Inch):
0.4469"
Drill Bit Size (mm):
11.35mm
Drill Point Angle:
140Ëš
Flute Length (Inch):
2-11/64"
Flute Length (Decimal Inch):
2.1653"
Flute Length (mm):
55mm
Overall Length (Inch):
4-1/64"
Overall Length (Decimal Inch):
4.0157"
Overall Length (mm):
102mm
Material:
Carbide
Finish/Coating:
AlCrN-T37
Cutting Direction:
Right Hand
Coolant Through:
Yes
