Features:

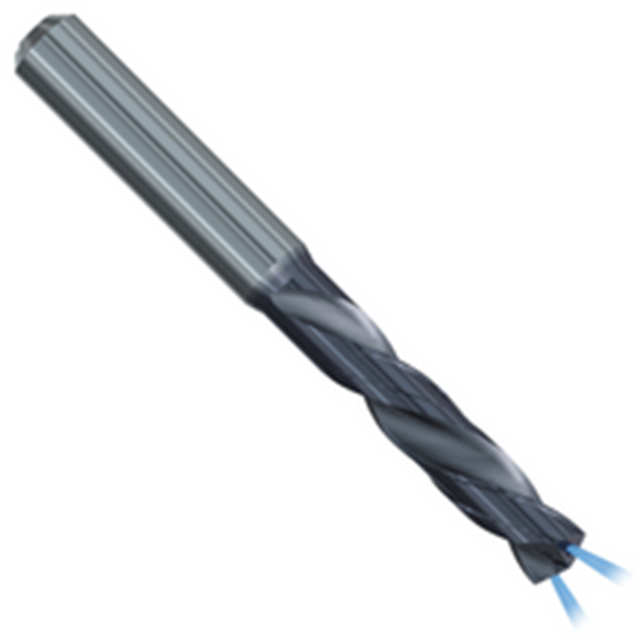

- High penetration rate carbide drill. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location.
Product Specifications
| EDP Number | TA209744.0833 |
| Decimal Size (Inch) | 0.3281" |
| End Style (Inch) | 0.3281" |
| Point Angle | 140 Degree |
| Size (Inch) | 21/64" |
| Applicable Material | Steel, Alloyed Steel, Nickel Alloys, Cast Iron |
| Application | High Penetration Rate Drill |
| Type | Multi Drill |
| Length Group | 3 x D |
| Coolant Fed | Yes |
| Coating | TIALN–T63 |
| Material | Carbide |
| Flutes | 2 |
| Flute / Helix Angle | 30 Degree |
| Shank (mm) | 10mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 89mm |
| Flute Length (mm) | 47mm |
| Flute Direction | Right Hand |
