Features:
- SteelDrill is designed for high penetration rate drilling in production applications
- Self-centering point geometry that eliminates the need for spot drilling
- Unique flute design creates short, constant chip formations that eliminate the need for peck-drilling
- Double margin flute design for rounder holes and improved surface finishes
Product Specifications
| Manufacturer Part Number | TA211544.0450 |
| Cutting Diameter (Decimal Inch) | 0.177" |
| Cutting Diameter (mm) | 4.50mm |
| Thread Size | 5xD |
| Overall Length (mm) | 74.00mm |
| Flute Length (mm) | 36.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 5xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Yes |
| Number of Flute | 2 |
| Point Angle (Degree) | 140 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALTIN-112 |

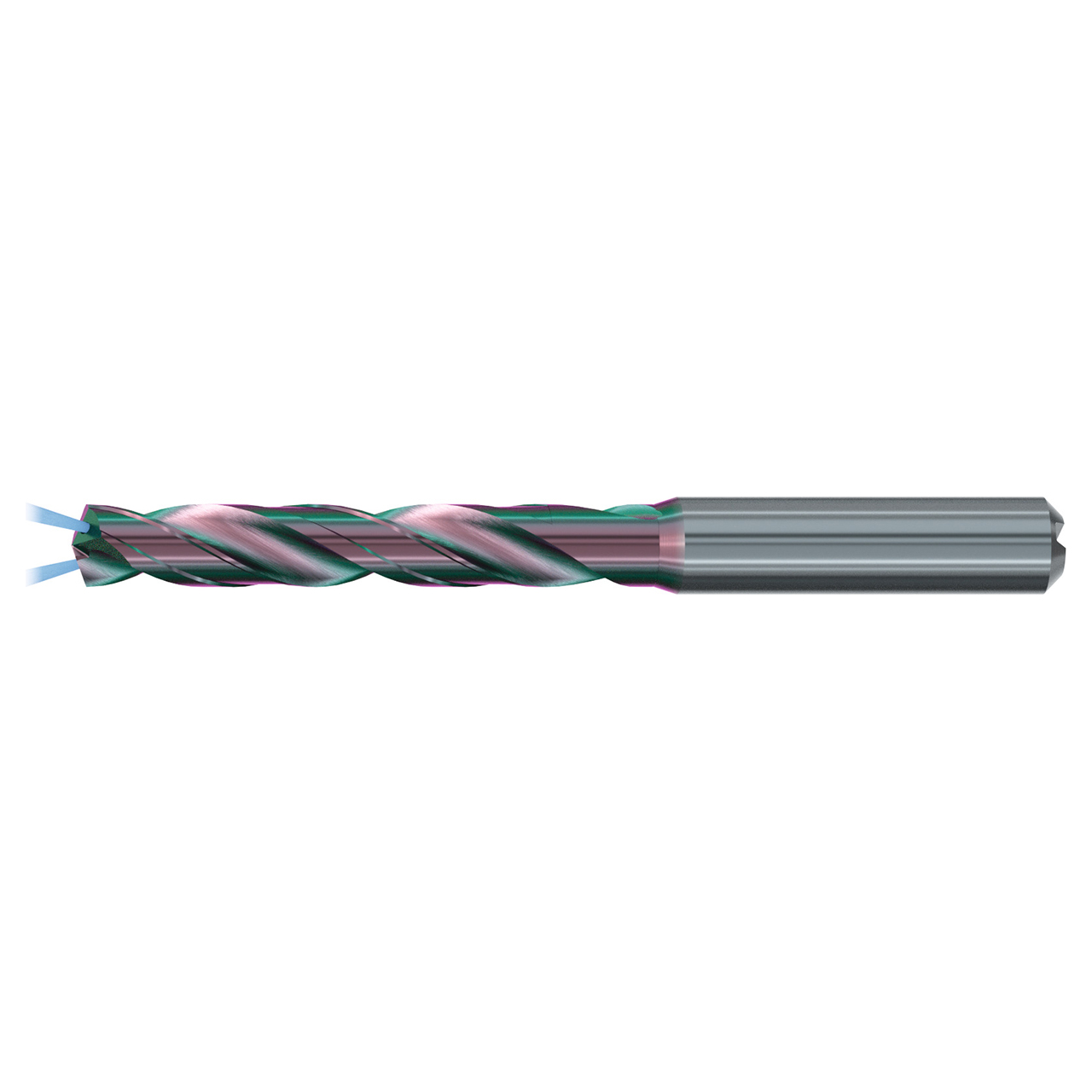

| Tool Type | SteelDrill |
| Application | High Penetration Rate Drill |
| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Drill Point Angle:
140 Degree
Flute Length (Inch):
1-27/64"
Flute Length (Decimal Inch):
1.4173"
Flute Length (mm):
36.00mm
Overall Length (Inch):
2-29/32"
Overall Length (Decimal Inch):
2.9134"
Overall Length (mm):
74.00mm
Finish/Coating:
ALTIN-112
interval quantity:
1
