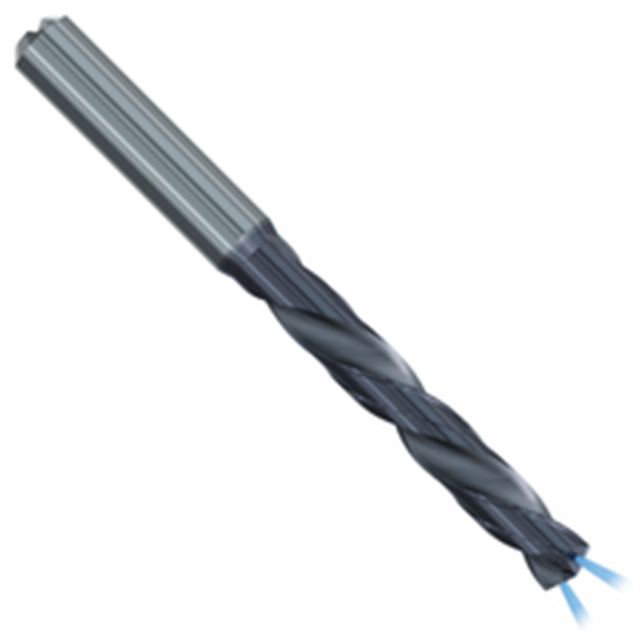

Features:
- High penetration rate carbide drill. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location.
Product Specifications
| EDP Number | TA219744.1588 |
| Decimal Size (Inch) | 0.6252" |
| End Style (Inch) | 0.6252" |
| Point Angle | 140 Degree |
| Size (Inch) | 5/8" |
| Applicable Material | Steel, Alloyed Steel, Nickel Alloys, Cast Iron |
| Application | High Penetration Rate Drill |
| Type | Multi Drill |
| Length Group | 5 x D |
| Coolant Fed | Yes |
| Coating | TIALN–T63 |
| Material | Carbide |
| Flutes | 2 |
| Flute / Helix Angle | 30 Degree |
| Shank (mm) | 16mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 133mm |
| Flute Length (mm) | 83mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
16.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
83.00mm
Point Angle:
140 Degree
Number of Flutes:
2
Flute Direction:
Right Hand
Finish/Coating:
TiAlN-T63
Tool Type:
MultiDRILL
Overall Length (mm):
133.00mm
interval quantity:
1
