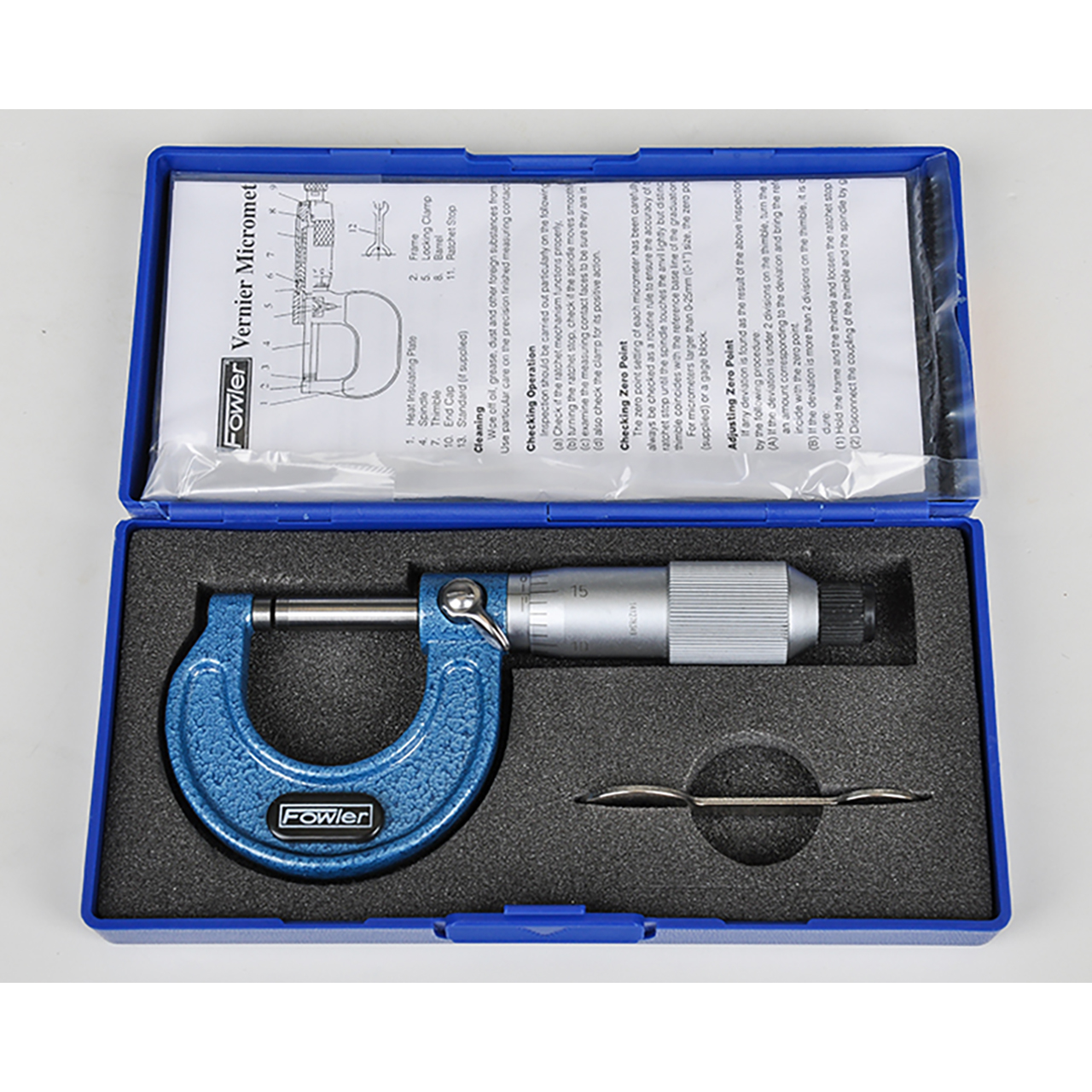

Fowler 52-253-001-1 | 0-1" Range x 0.001" Graduation Mechanical Outside Micrometer

$38.31
SKU:
30066207
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

The Fowler No. 52-253 series of outside micrometers features exceptional quality and accuracy.Distinct figures and graduations on the non-glare, satin chrome background permit easy reading, and the ribbed frame allows for measuring with extra ease and comfort.

Features:
  • Our Part # 522530011/52-253-001-1
  • Hammertone blue baked enamel finish
  • Microfine graduations on satin chrome finish and carbide tipped measuring faces
  • Friction thimble
  • Includes standard with sizes 2" and over
  • Friction stop thimble for exact and repetitive readings
  • Positive lever locking clamp ensures reliable measurement
  • Anvil & spindle hardened and precision ground with microlap finish on tips
  • All micrometers meet or exceed U.S. Federal specifications for accuracy
  • Includes a wrench and case

Product Specifications
Range (Inch)0-1"
Parallelism (Inch)0.00005" for 0-1"
Diameter of measuring faces (Inch).256"
Graduation (Inch)0.001"
Accuracy (Inch)± 0.001"
Flatness (Inch)0.00003"
ThimbleFriction

Technical Files

Download The Item Manual
Download Parts List
