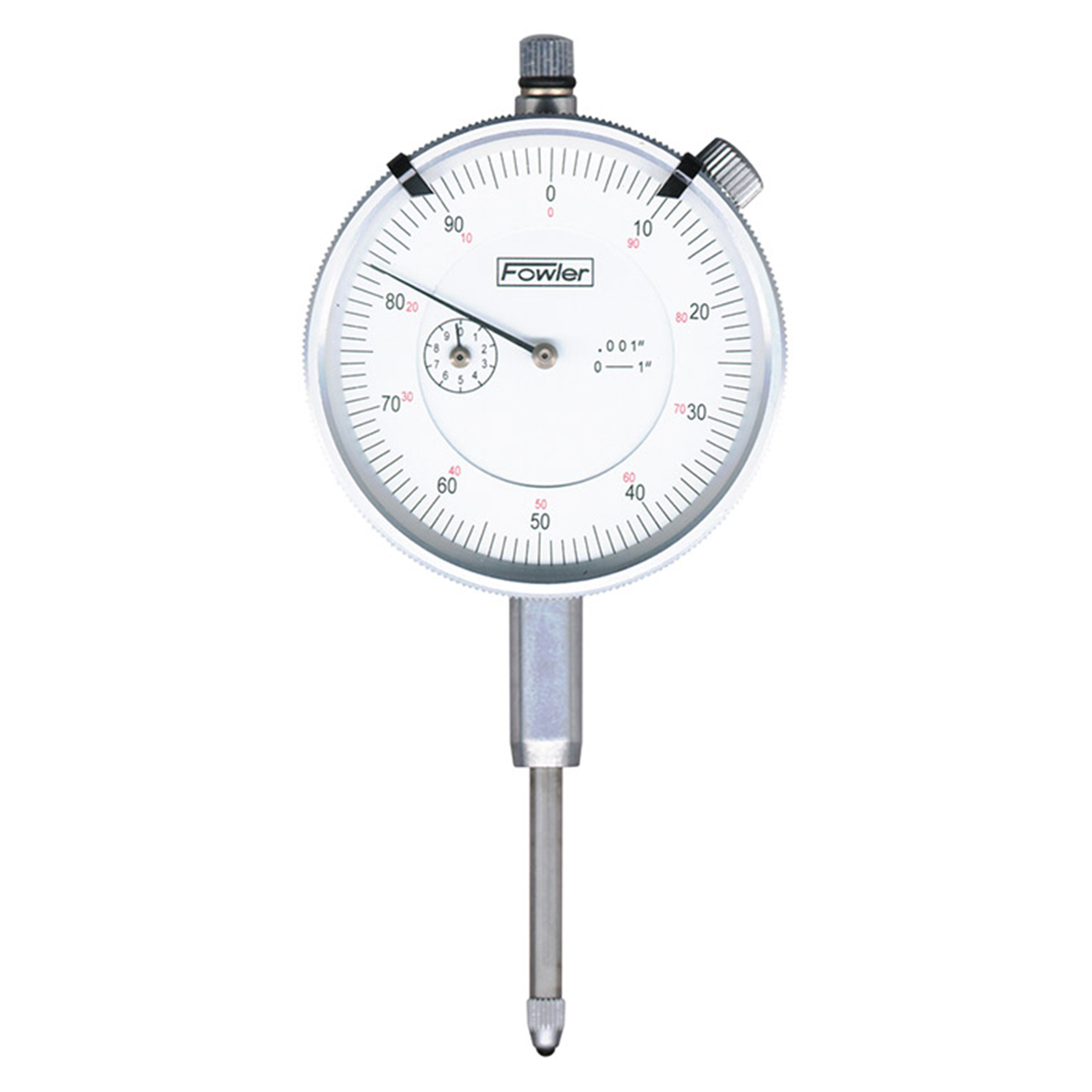

Fowler 52-520-110-0 | 1" Range x 0.001" Graduation Dial Drop Indicator

• Our Part # 525201100/52-520-110-0
• Revolution counter hand
• Supplied with lug backs positioned through 90 Degree increments
• Spindle rack & contact points of hardened stainless steel for long wear; cases forged brass, satin-chromed; gear wheels hard brass
• Pinions of silver steel, hardened tempered and burnished on pivots; lapped on teeth
• Microfine graduations in black for continuous readings and red for balanced readings
• Movement mounted independently from case on rigid supporting plate, ensuring perfect and permanent alignment
• Extra long springs for uniform pressure through entire travel of spindle
• Bezel knurled; easily adjusted thru 360 Degree
• Meets AGD specifications. Group II & III gages-measuring pressure approximately 2 oz. except 0.0001" (0.002mm) which is 5 oz.
• Includes adjustable tolerance limit markers
• Price includes fitted carton box
