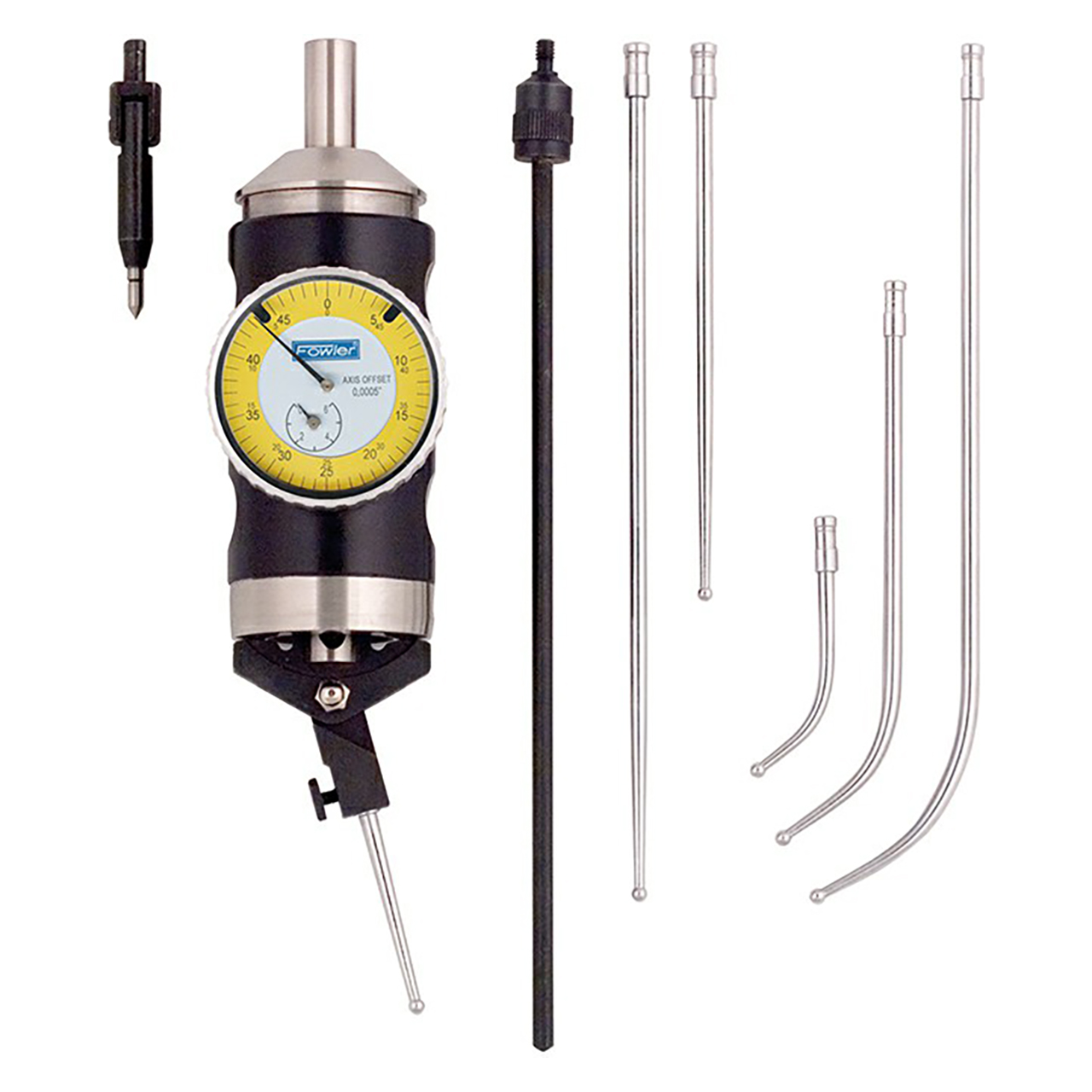

Use the 2D Coaxial Set for accurate component centering and positioning in most machining applications. The 2D Coaxial indicator can be used at any angle and the dial remains stationary during the rotation of the machine spindle.Features:. Indicator assembly with 1.6" (42.5mm) diameter dial. Graduations and revolution counter .0005" (.01mm). 3 Internal and 3 External feelers. Center point feeler. Restraining arm.
Product Specifications
| Length | 6-7/8" (175mm) |
| Shank Diameter | 3/8"x7/8" (10mmx20mm) |
| Long Feelerball | 1/8" (3mm) |
| Dial Readings | 0-50 |
| Measuring Range | Ā 0.250" (6mm) |
| Speed | Recommended not to exceed approx. 800RPM |
| Locating Accuracy to Within | 0002"(.005mm) of true center |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fowler
