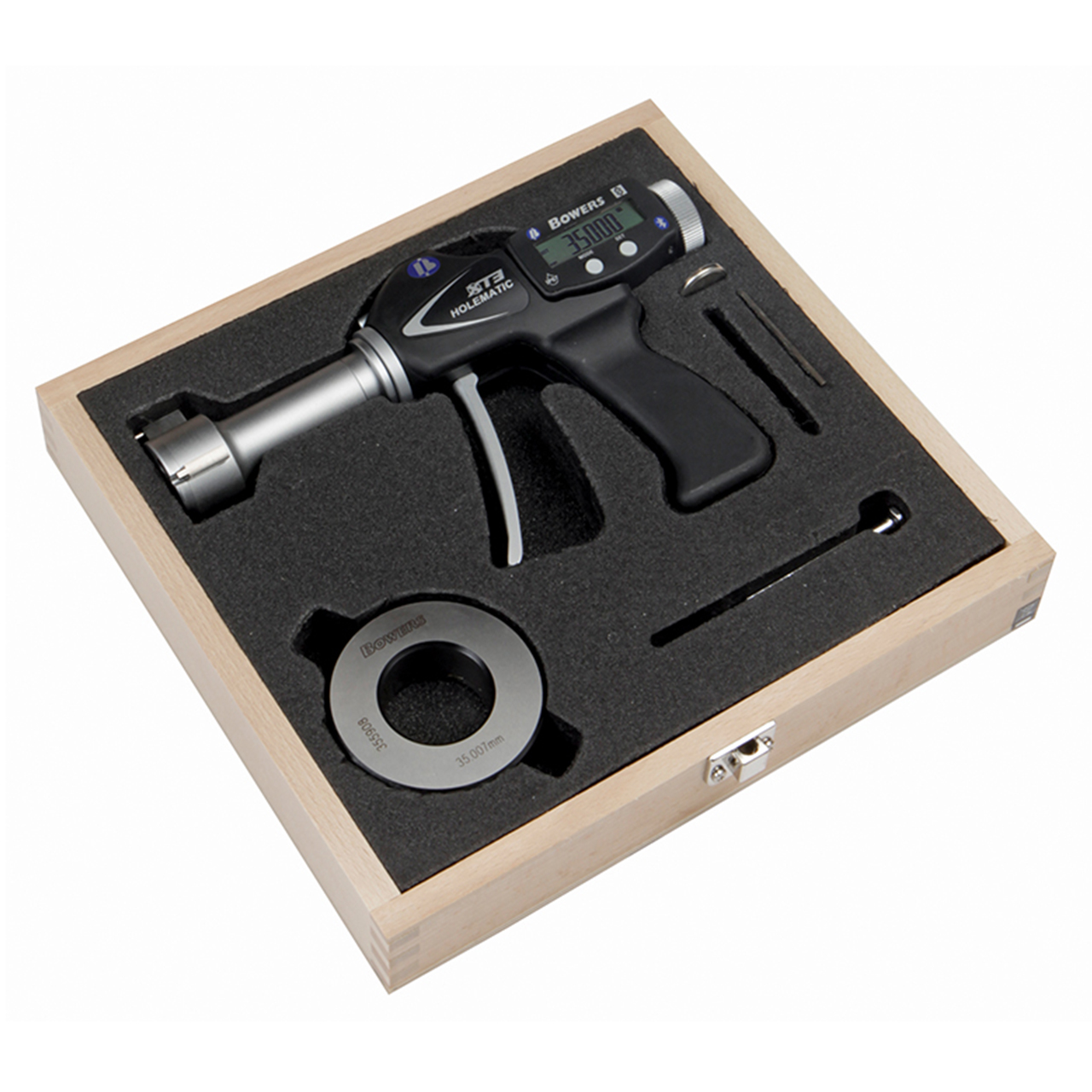

Fowler 54-567-735-BT | 1.375"- 2"/3550.00mm Range x 0.00015" Accuracy XTH3 Holematic Pistol Electronic Bore Gage

Fowler-Bowers XT3 Bluetooth Holematic Pistol Grip range of bore gages offer extended travel with fixed anvils. The pistol grip handle incorporates a constant measuring pressure to eliMinate operator "feel."

• Our Part # 54567735BT/54-567-735-BT
• To reduce hand fatigue, the travel of the trigger is adjustable for Minimum over-travel
• Larger easy-to-read swivel display
• Self centering heads
• Proximity output and USB connectivity
• Four preset memories
• Fixed anvils
• Tungsten carbide measuring faces on all 3-point heads from .5" (12.5mm) and up
• Heads with special anvils threads, splines, slots, etc
• Sizes over .500" (12.5mm) feature blind bore capability
• Setting rings included in all sets
• Includes UKAS certificates for all pistol grip, heads and rings
• Bluetooth Electronic Holematic Pistol Grip XTH-Individual sizes (includes pistol grip, head and ring)
• Contact the Fowler Technical Department for special anvil applications
