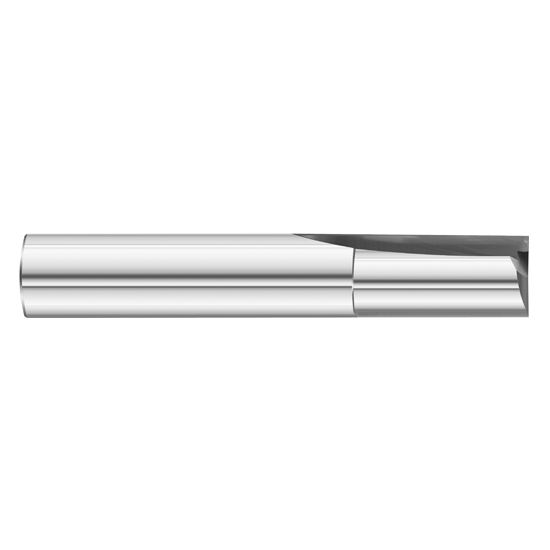

Fullerton Tool 12140 | 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2" OAL 2 Flute Uncoated Solid Carbide Square End Mill

$28.70 $18.08
(You save $10.62)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Number of Flutes:
2
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Straight
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25004283
UPC:
Weight:
0.13 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 12140 | 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2" OAL 2 Flute Uncoated Solid Carbide Square End Mill

Features

  • The 3242 Straight Flute is a 2-flute, general purpose end mill designed for use in cast iron, brass, bronze, and hardened steels
  • The 3242 Straight Flute is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.1875"
Cutting Diameter (mm) 4.76mm
Cutting Diameter (Inch) 3/16"
Cutting Flute Length (Decimal Inch) 0.6250"
Cutting Flute Length (mm) 15.88mm
Cutting Flute Length (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Flute Spiral Direction Straight
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
