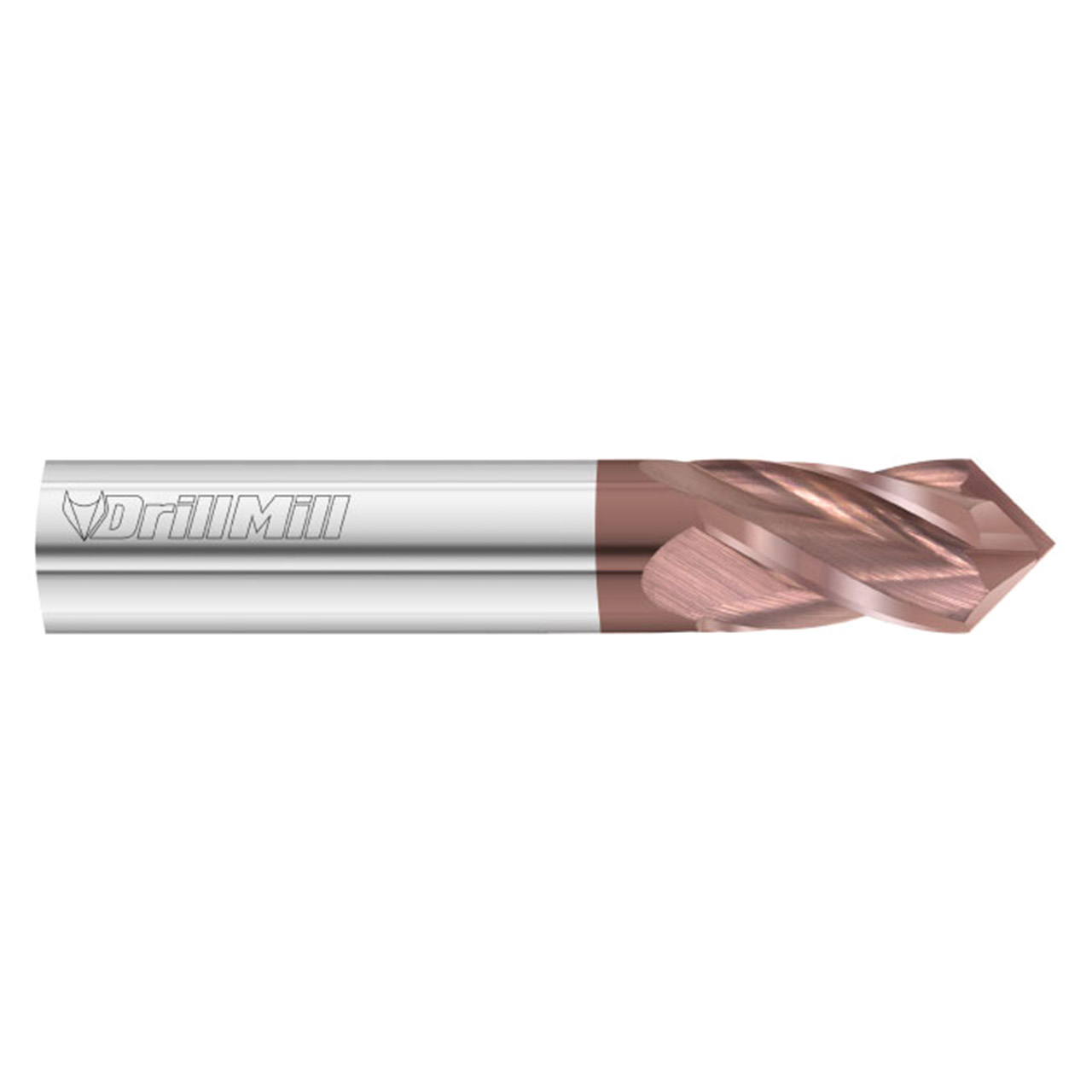

Check out The 1200 Drill Mill ย it excels in chamfering, side milling, and drilling operations in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum. The 1200 Drill Mill has 4-flutes and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction.
| Manufacturer Part Number | 12709 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Cutting Flute Length (Inch) | 1" |
| Cutting Flute Length (Decimal Inch) | 1.000" |
| Cutting Flute Length (mm) | 25.40mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30.00 Degree |
| Point Include Angle (Degree) | 90.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Four Facet |
| Coating | FC20 |
| Series | 1200 |
| Product Type | Drill Mill |
