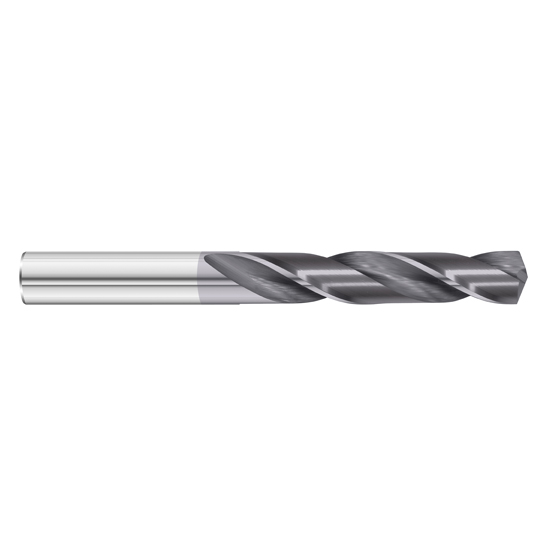

Fullerton Tool 13044 | 7/64" Solid Carbide TiAlN Jobbers Length Drill

Fullerton Tool 13044 | 7/64" Solid Carbide TiAlN Jobbers Length Drill

SKU: 10000951 Weight: 0.08 LBS Minimum Purchase: 1 unit
UPC:
$21.58 $21.15
(You save $0.43)
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper
  • Its robust notched cam point and 30 Degree spiral allows for higher feed rates and increased tool life
  • The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.1094"
Cutting Diameter (mm) 2.78mm
Cutting Diameter (Inch) 7/64"
Cutting Flute Length (Decimal Inch) 1.2500"
Cutting Flute Length (mm) 31.75mm
Cutting Flute Length (Inch) 1-1/4"
Shank Diameter (Decimal Inch) 0.1094"
Shank Diameter (mm) 2.78mm
Shank Diameter (Inch) 7/64"
Overall Length (Decimal Inch) 2.2500"
Overall Length (mm) 57.15mm
Overall Length (Inch) 2-1/4"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Notched
End Type Character Designation N
Point Include Angle 135
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
