Features

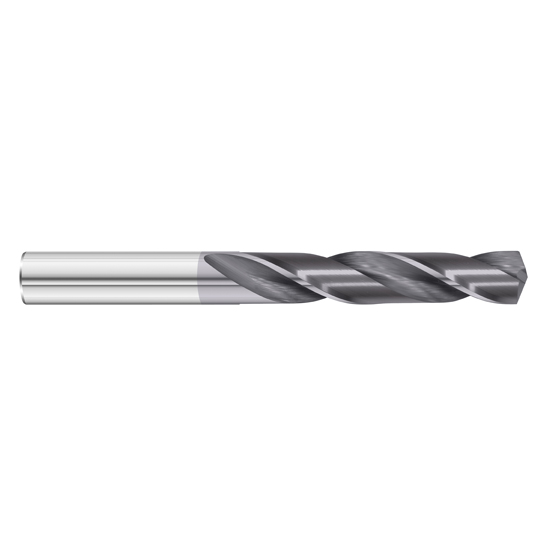

- The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper
- Its robust notched cam point and 30 Degree spiral allows for higher feed rates and increased tool life
- The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3860" |
| Cutting Diameter (mm) | 9.80mm |
| Diameter (Letter) | W |
| Cutting Flute Length (Decimal Inch) | 2.8750" |
| Cutting Flute Length (mm) | 73.03mm |
| Cutting Flute Length (Inch) | 2-7/8" |
| Shank Diameter (Decimal Inch) | 0.3860" |
| Shank Diameter (mm) | 9.80mm |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (mm) | 114.30mm |
| Overall Length (Inch) | 4-1/2" |
| Coating/Finish | FC7 |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Notched |
| End Type Character Designation | N |
| Point Include Angle | 135 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 7xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.3860"
Drill Bit Size (mm):
9.80mm
Drill Bit Size (Letter):
W
Drill Point Angle:
135 Degree
Material:
Solid Carbide
Finish/Coating:
FC7
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
