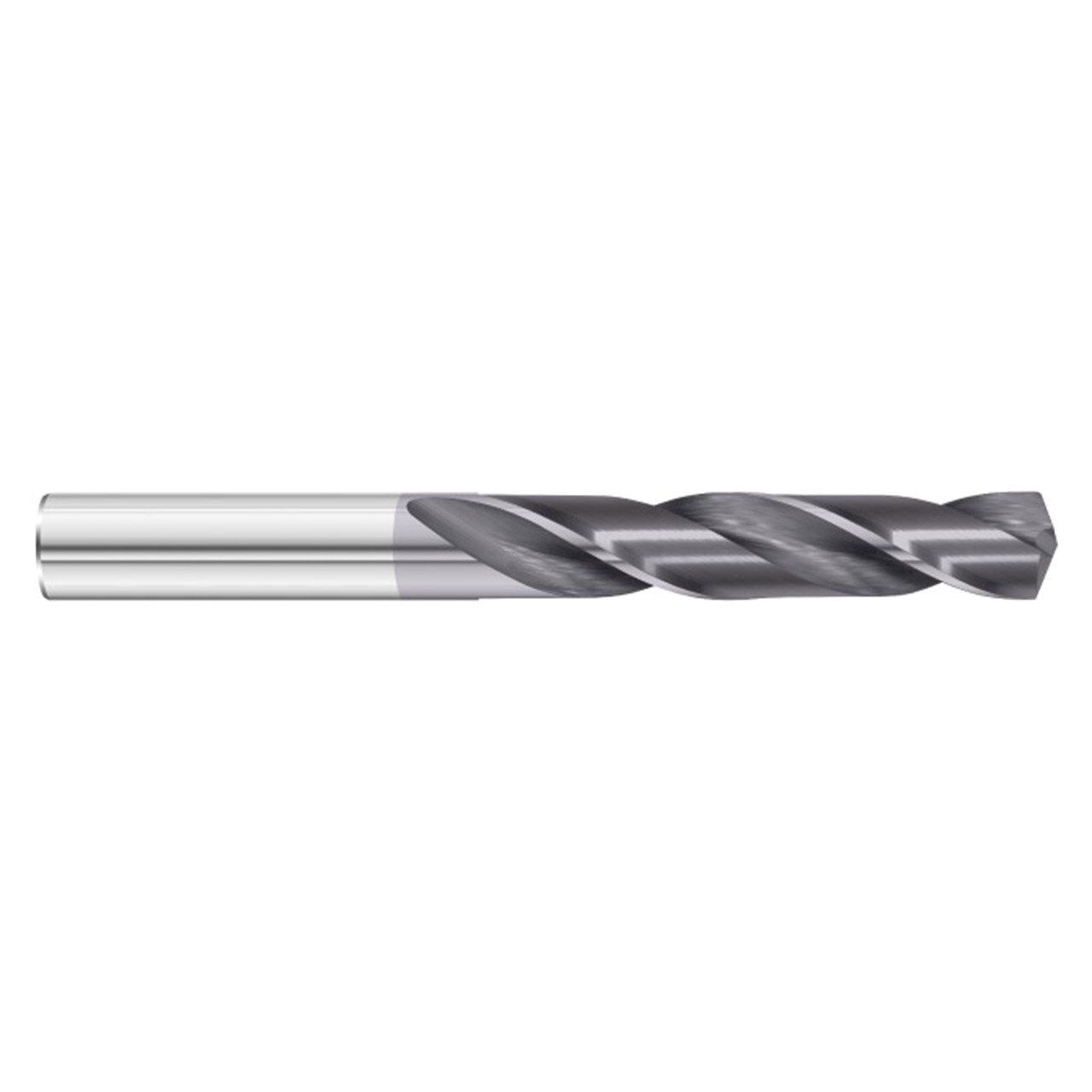

It's designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, steels, cast iron, and brass & copper. Its robust notched cam point and 30 degree spiral allows for higher feed rates and increased tool life. The 1500 Notched Cam Point has 2-flutes and is stocked uncoated, with FC-7 and coating. Get started with The Notched Cam Point drill!
Product Specifications
| Manufacturer Part Number | 13135 |
| Cutting Diameter (Decimal Inch) | 0.397" |
| Cutting Diameter (mm) | 10.08mm |
| Shank Diameter (Decimal Inch) | 0.397" |
| Shank Diameter (mm) | 10.08mm |
| Cutting Flute Length (Inch) | 2-7/8" |
| Cutting Flute Length (Decimal Inch) | 2.875" |
| Cutting Flute Length (mm) | 73.03mm |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (Decimal Inch) | 4.500" |
| Overall Length (mm) | 114.30mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30.00 Degree |
| Point Include Angle (Degree) | 135.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Notched |
| Coating | FC7 |
| Series | 1500 |
| Product Type | Screw Machine Length Drill Bit |
