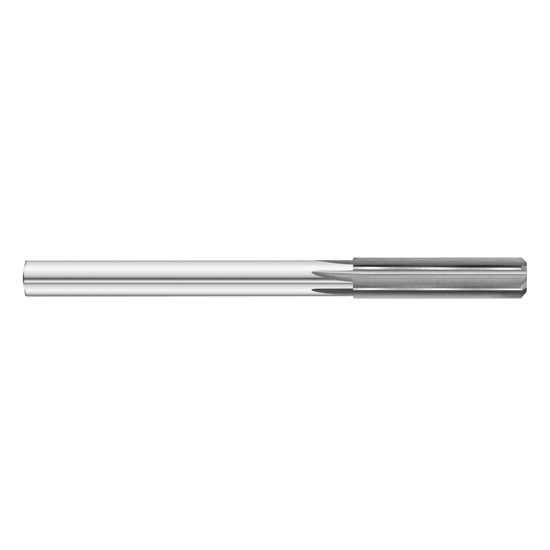

Fullerton Tool 14004 | 1/32" Diameter 3/8" Flute Reamer

$21.66
Brand:
Fullerton Tool
Reamer Diameter (Inch):
1/32"
Reamer Diameter (Decimal Inch):
0.0312"
Reamer Diameter (mm):
0.79mm
Flute Length (Inch):
3/8"
Flute Length (Decimal Inch):
0.3750"
Flute Length (mm):
9.53mm
Flute Type:
Straight
Ships:
From Partner Facility
SKU:
10002231
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Ships:
From Partner Facility

Features

  • The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
  • Its known for its tight tolerances and exceptional performance
  • The 1400 Carbide Reamer is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.0312"
Cutting Diameter (mm) 0.79mm
Cutting Diameter (Inch) 1/32"
Cutting Flute Length (Decimal Inch) 0.3750"
Cutting Flute Length (mm) 9.53mm
Cutting Flute Length (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.0312"
Shank Diameter (mm) 0.79mm
Shank Diameter (Inch) 1/32"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Flute Spiral Direction Straight
Direction of Cut Right Hand
Point End Type 45° Cutting Chamfer
End Type Character Designation C
Chamfer Angle (Degrees) 45
Center Type Male
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
