Features

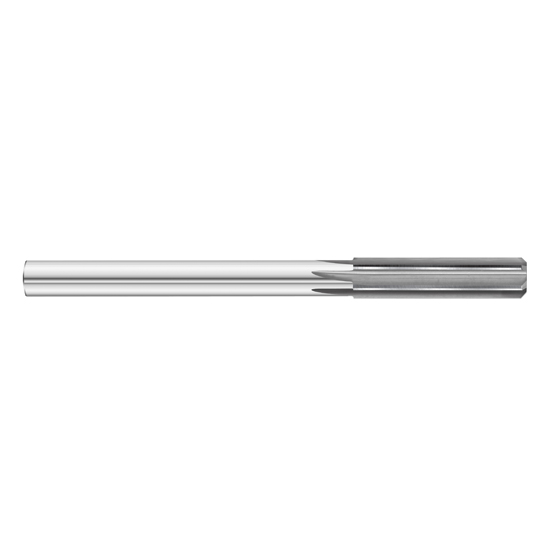

- The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
- Its known for its tight tolerances and exceptional performance
- The 1400 Carbide Reamer is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.0595" |
| Cutting Diameter (mm) | 1.51mm |
| Diameter (Wire) | 53 |
| Cutting Flute Length (Decimal Inch) | 0.3750" |
| Cutting Flute Length (mm) | 9.53mm |
| Cutting Flute Length (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.0469" |
| Shank Diameter (mm) | 1.19mm |
| Shank Diameter (Inch) | 3/64" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (mm) | 38.10mm |
| Overall Length (Inch) | 1-1/2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 4 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | 45 DegreeCutting Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 45 |
| Center Type | Male |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Stub |
| Length Designator | STB |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Reamer Diameter (Decimal Inch):
0.0595"
Reamer Diameter (mm):
1.51mm
Flute Length (Inch):
3/8"
Flute Length (Decimal Inch):
0.3750"
Flute Length (mm):
9.53mm
Flute Type:
Straight
Ships:
From Partner Facility
interval quantity:
1
