Features

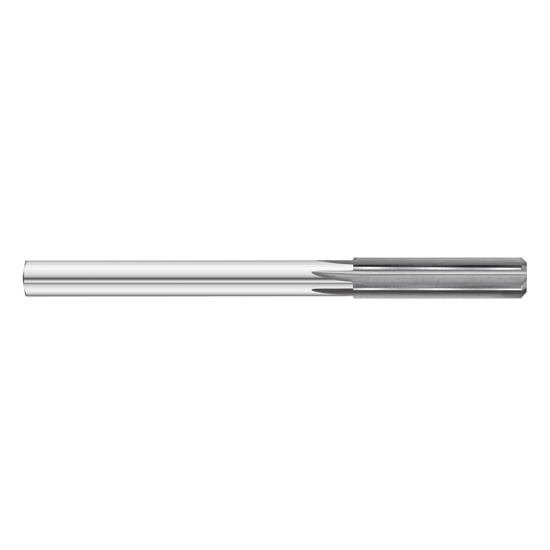

- The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
- Its known for its tight tolerances and exceptional performance
- The 1400 Carbide Reamer is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1406" |
| Cutting Diameter (mm) | 3.57mm |
| Cutting Diameter (Inch) | 9/64" |
| Cutting Flute Length (Decimal Inch) | 0.7500" |
| Cutting Flute Length (mm) | 19.05mm |
| Cutting Flute Length (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Overall Length (Inch) | 2-1/2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 4 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | 45 DegreeCutting Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 45 |
| Center Type | Female |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Stub |
| Length Designator | STB |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Reamer Diameter (Inch):
9/64"
Reamer Diameter (Decimal Inch):
0.1406"
Reamer Diameter (mm):
3.57mm
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Flute Length (mm):
19.05mm
Flute Type:
Straight
Ships:
From Partner Facility
IsDiscontinued:
