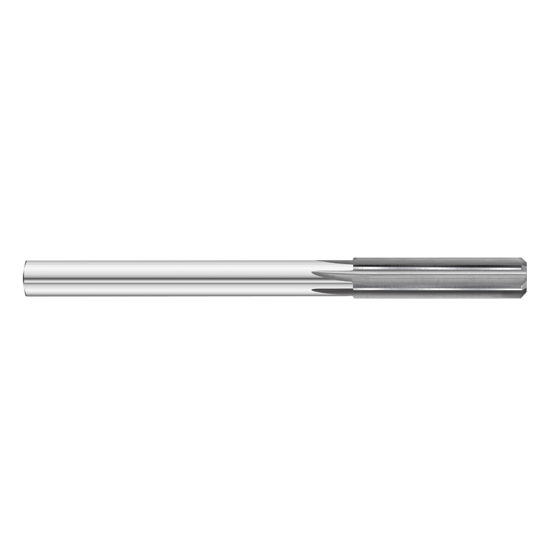

Fullerton Tool 14086 | 13/64" Diameter 1" Flute Reamer

$81.32 $51.23
(You save $30.09)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Reamer Diameter (Inch):
13/64"
Reamer Diameter (Decimal Inch):
0.2031"
Reamer Diameter (mm):
5.16mm
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1"
Flute Length (mm):
25.40mm
Flute Type:
Straight
Ships:
From Partner Facility
IsDiscontinued:
SKU:
10002244
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Features

  • The 1400 Carbide Reamer is a straight-flute, right-hand cut reamer with a 45 Degree chamfer angle designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, aluminum, and wood
  • Its known for its tight tolerances and exceptional performance
  • The 1400 Carbide Reamer is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.2031"
Cutting Diameter (mm) 5.16mm
Cutting Diameter (Inch) 13/64"
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 6
Flute Spiral Direction Straight
Direction of Cut Right Hand
Point End Type 45 DegreeCutting Chamfer
End Type Character Designation C
Chamfer Angle (Degrees) 45
Center Type Female
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
