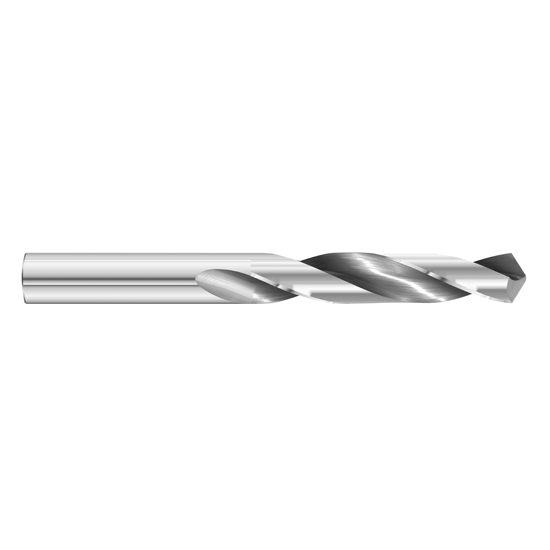

Fullerton Tool 15017 | #66 Solid Carbide Uncoated Jobbers Length Drill

$13.37
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.0330"
Drill Bit Size (mm):
0.84mm
Drill Bit Size (Wire):
#66
Drill Point Angle:
118°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Coolant Through:
Non Coolant Through
SKU:
10001258
Weight:
0.08 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 15017 | #66 Solid Carbide Uncoated Jobbers Length Drill
Product Specifications
Cutting Diameter (Decimal Inch) 0.0330"
Cutting Diameter (mm) 0.84mm
Diameter (Wire) 66
Cutting Flute Length (Decimal Inch) 0.3125"
Cutting Flute Length (mm) 7.94mm
Cutting Flute Length (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.0330"
Shank Diameter (mm) 0.84mm
Overall Length (Decimal Inch) 1.2500"
Overall Length (mm) 31.75mm
Overall Length (Inch) 1-1/4"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 25
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Four Facet
End Type Character Designation FF
Point Include Angle 118
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
