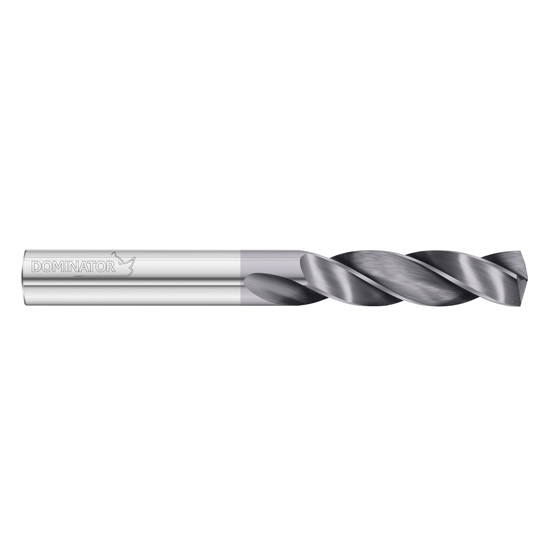

Fullerton Tool 15178 | 49/64" Solid Carbide FC7 Jobbers Length Drill

$546.43 $344.25
(You save $202.18)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Inch):
49/64"
Drill Bit Size (Decimal Inch):
0.7656"
Drill Bit Size (mm):
19.45mm
Drill Point Angle:
144°
Material:
Solid Carbide
Finish/Coating:
FC7
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
SKU:
10001089
UPC:
Weight:
0.08 LBS
Shipping:
Free Shipping

Features

  • The 1505 Dominator is a 2-flute, high performance drill designed for holding tight tolerance holes and eliminating the need for reaming in steels, stainless steels, super alloys, and titanium
  • Its unique geometrical features improve surface finishes, enhance chip removal, and increase coolant flow
  • The 1505 Dominator is stocked with FC-7 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.7656"
Cutting Diameter (mm) 19.45mm
Cutting Diameter (Inch) 49/64"
Cutting Flute Length (Decimal Inch) 4.0000"
Cutting Flute Length (mm) 101.60mm
Cutting Flute Length (Inch) 4"
Shank Diameter (Decimal Inch) 0.8750"
Shank Diameter (mm) 22.23mm
Shank Diameter (Inch) 7/8"
Overall Length (Decimal Inch) 6.0000"
Overall Length (mm) 152.40mm
Overall Length (Inch) 6"
Cleared Length (Decimal Inch) 3.5000"
Cleared Length (mm) 88.90mm
Coating/Finish FC7
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Notched
End Type Character Designation N
Point Include Angle 144
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 3xD
