Features

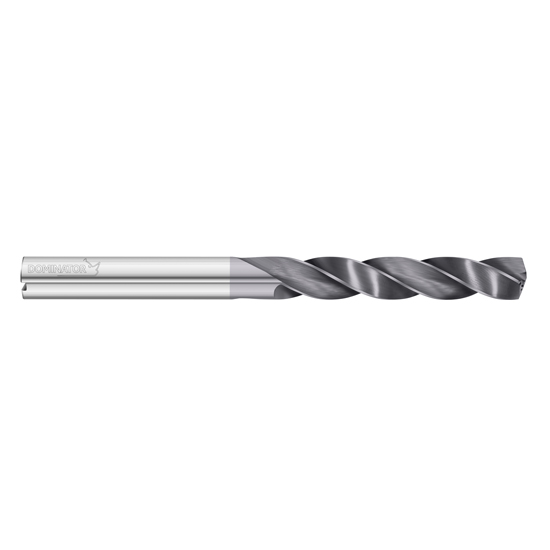

- The 1505 Dominator is a 2-flute, high performance drill designed for holding tight tolerance holes and eliminating the need for reaming in steels, stainless steels, super alloys, and titanium
- Its unique geometrical features improve surface finishes, enhance chip removal, and increase coolant flow
- The 1505 Dominator is stocked with FC-7 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.4062" |
| Cutting Diameter (mm) | 10.32mm |
| Cutting Diameter (Inch) | 13/32" |
| Cutting Flute Length (Decimal Inch) | 2.7500" |
| Cutting Flute Length (mm) | 69.85mm |
| Cutting Flute Length (Inch) | 2-3/4" |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (mm) | 114.30mm |
| Overall Length (Inch) | 4-1/2" |
| Cleared Length (Decimal Inch) | 2.3750" |
| Cleared Length (mm) | 60.33mm |
| Coating/Finish | FC7 |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Notched |
| End Type Character Designation | N |
| Point Include Angle | 144 |
| End Type | Single End |
| Coolant Through | Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 5xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Inch):
13/32"
Drill Bit Size (Decimal Inch):
0.4062"
Drill Bit Size (mm):
10.32mm
Drill Point Angle:
144°
Material:
Solid Carbide
Finish/Coating:
FC7
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Through Coolant
Ships:
From Partner Facility
