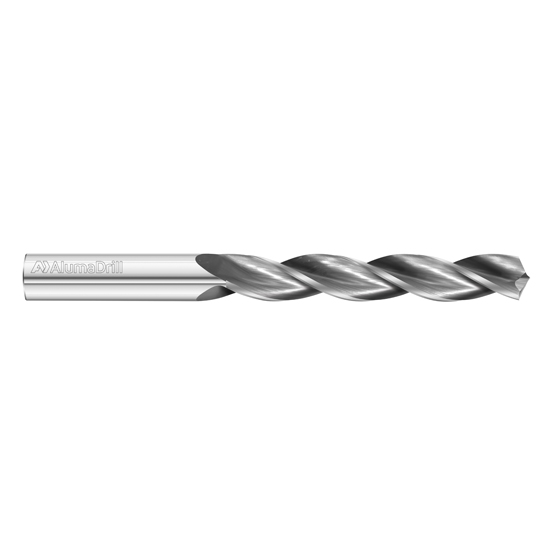

Fullerton Tool 15688 | 6.00mm Solid Carbide Uncoated Jobbers Length Drill

Fullerton Tool 15688 | 6.00mm Solid Carbide Uncoated Jobbers Length Drill

SKU: 10001590 Weight: 0.08 LBS Minimum Purchase: 1 unit
UPC:
$60.02 $58.82
(You save $1.20)
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 1565 AlumaDrill is a 3-flute, high performance drill designed for high-speed drilling in titanium, graphite, brass & copper, high si aluminum, low si aluminum, composites, plastics, and wood
  • It features enhanced chip evacuation in high speed drilling applications and its unique radial grinds allow self-centering and increases aggressiveness in softer materials
  • The 1565 AlumaDrill is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.2362"
Cutting Diameter (mm) 6.00mm
Cutting Flute Length (Decimal Inch) 1.9685"
Cutting Flute Length (mm) 50.00mm
Shank Diameter (Decimal Inch) 0.2362"
Shank Diameter (mm) 6.00mm
Overall Length (Decimal Inch) 3.2283"
Overall Length (mm) 82.00mm
Coating/Finish Uncoated
Metric/Inch Metric
Number of Flutes 3
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Hi-Performance
End Type Character Designation HP
Point Include Angle 130
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
