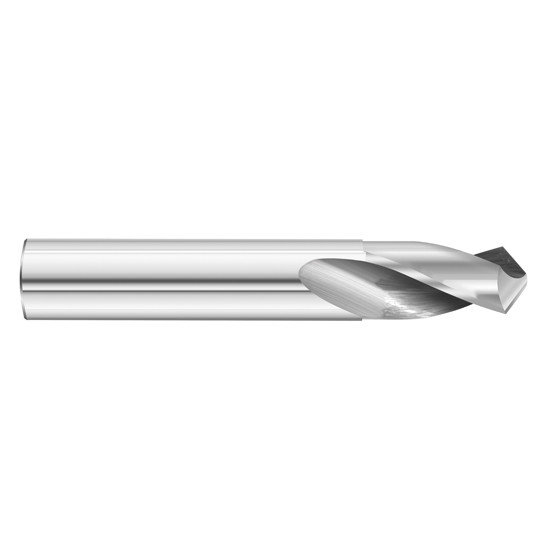

Fullerton Tool 16018 | 5/64" Solid Carbide Uncoated Screw Machine Length Drill

$19.73 $12.43
(You save $7.30)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Inch):
5/64"
Drill Bit Size (Decimal Inch):
0.0781"
Drill Bit Size (mm):
1.98mm
Drill Point Angle:
118°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Coolant Through:
Non Coolant Through
Ships:
From Partner Facility
IsDiscontinued:
SKU:
10002018
UPC:
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Features

  • The 1510 4-Facet Point is a 2-flute, general purpose drill designed for use in titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass & copper, high si aluminum, low si aluminum, composites, and wood
  • This drill is the preferred design for screw machine and Swiss lathe applications
  • The 1510 4-Facet Point is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.0781"
Cutting Diameter (mm) 1.98mm
Cutting Diameter (Inch) 5/64"
Cutting Flute Length (Decimal Inch) 0.3750"
Cutting Flute Length (mm) 9.53mm
Cutting Flute Length (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.0781"
Shank Diameter (mm) 1.98mm
Shank Diameter (Inch) 5/64"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 25
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Four Facet
End Type Character Designation FF
Point Include Angle 118
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator 5xD
