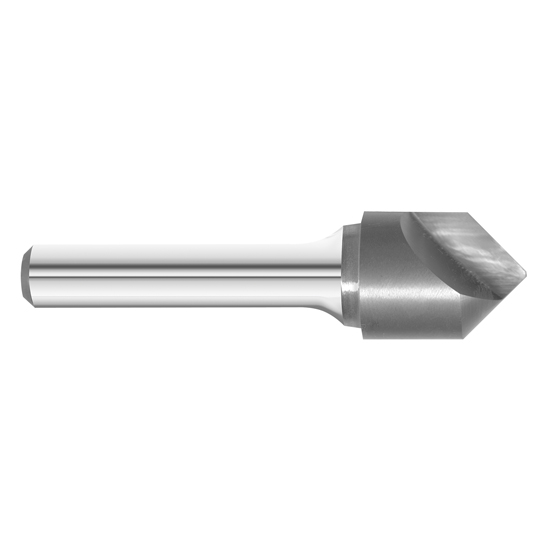

Fullerton Tool 18629 | 5/8" x 90-degree 1 Flute Solid Carbide Countersink

About This Item

Features

• The 1847 1FL Countersink has a single, 90 Degree flute designed for use in mild steels and other non-ferrous materials
• The 1847 1FL Countersink is stocked uncoated

Product Specifications

Cutting Diameter (Decimal Inch)	0.6250"
Cutting Diameter (mm)	15.88mm
Cutting Diameter (Inch)	5/8"
Shank Diameter (Decimal Inch)	0.3750"
Shank Diameter (mm)	9.53mm
Shank Diameter (Inch)	3/8"
Overall Length (Decimal Inch)	2.7500"
Overall Length (mm)	69.85mm
Overall Length (Inch)	2-3/4"
Coating/Finish	Uncoated
Metric/Inch	Inch
Countersink Angle (Degrees)	90
Number of Flutes	1
Helix Angle (Degrees)	15
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
