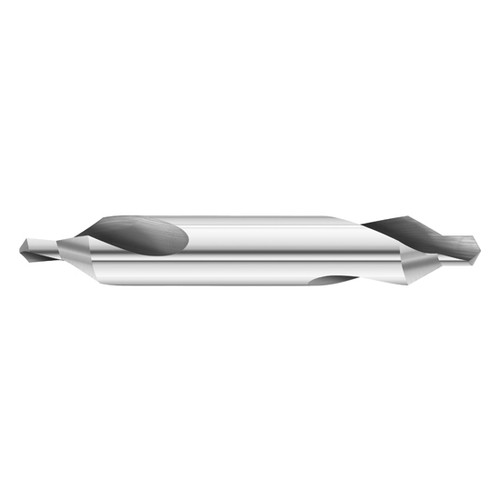

Fullerton Tool 23307 | 5/8" Combined Drill & Countersink

$153.74 $150.67
(You save $3.07)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Trade Size:
7
Included Angle:
118 Degree
Material:
Solid Carbide
Finish/Coating:
Uncoated
Body Diameter (Inch):
5/8"
Body Diameter (Decimal Inch):
0.6250"
Body Diameter (mm):
15.88mm
Drill Point Diameter (Inch):
1/4"
Drill Point Diameter (Decimal Inch):
0.2500"
Drill Point Diameter (mm):
6.35mm
End Type:
Double End
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Cutting Direction:
Right Hand
Ships:
From Partner Facility
interval quantity:
1
SKU:
10000666
UPC:
Weight:
0.80 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 23307 | 5/8" Combined Drill & Countersink

Features

  • The 2305 Center Drill is a 2-flute, general purpose drill designed to be a combination drill and countersink, centering and chamfering in one single operation
  • It can be used in a variety of materials including titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass & copper, aluminum, composites, and wood
  • The 2305 Center Drill is available in 60 Degree, 82 Degree, and 90 Degree angle points and is stocked uncoated and with TAILN coating

Product Specifications
Pilot Diameter (Decimal Inch) 0.2500"
Pilot Diameter (mm) 6.35mm
Pilot Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (mm) 15.88mm
Shank Diameter (Inch) 5/8"
Overall Length (Decimal Inch) 3.2500"
Overall Length (mm) 82.55mm
Overall Length (Inch) 3-1/4"
Coating/Finish Uncoated
Metric/Inch Inch
Countersink Angle (Degrees) 90
Tool Number 7
Number of Flutes 2
Helix Angle (Degrees) 25
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Cam Relieved
End Type Character Designation CAM
Point Include Angle 118
End Type Double End
Coolant Through Non Coolant Through
Weldon Flat No
