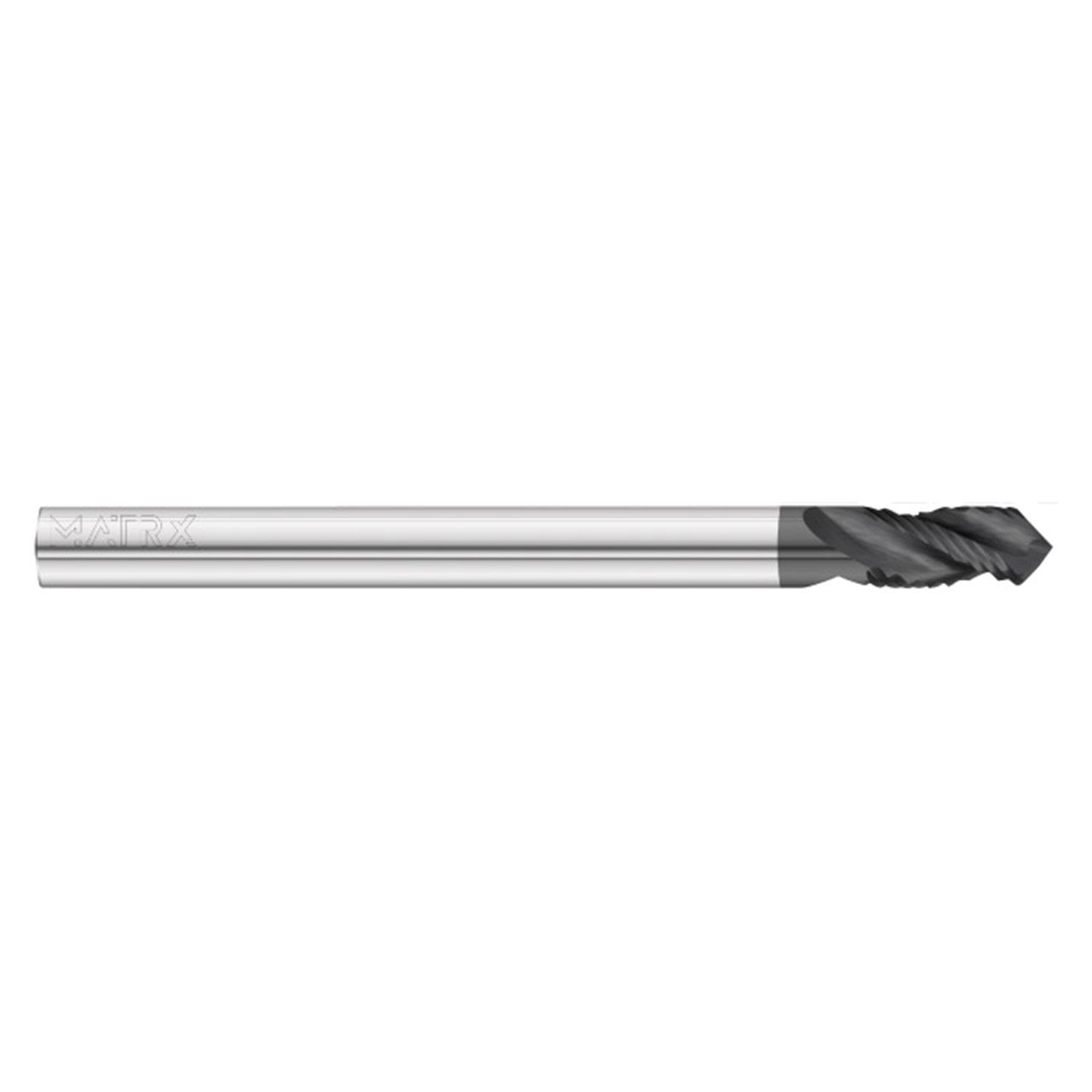

The 5566 MATRX Poly Drill ย it dominates in burr-free drilling of graphite, composites, and plastics. It produces, clean, burr-free holes without breakout, eliminating the need for sanding or deburring. The 5566 Poly Drill is a high-performance drill with 3-flutes and stocked uncoated and with FC-1 coating. Check out The MATRX Poly Drill today!
| Manufacturer Part Number | 25301 |
| Cutting Diameter (Decimal Inch) | 0.197" |
| Cutting Diameter (mm) | 5.00mm |
| Shank Diameter (Decimal Inch) | 0.197" |
| Shank Diameter (mm) | 5.00mm |
| Cutting Flute Length (Decimal Inch) | 1.260" |
| Cutting Flute Length (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 30.00 Degree |
| Point Include Angle (Degree) | 90.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Notched |
| Coating | FC1 |
| Series | 5566 |
| Product Type | MATRX Poly Drill |
