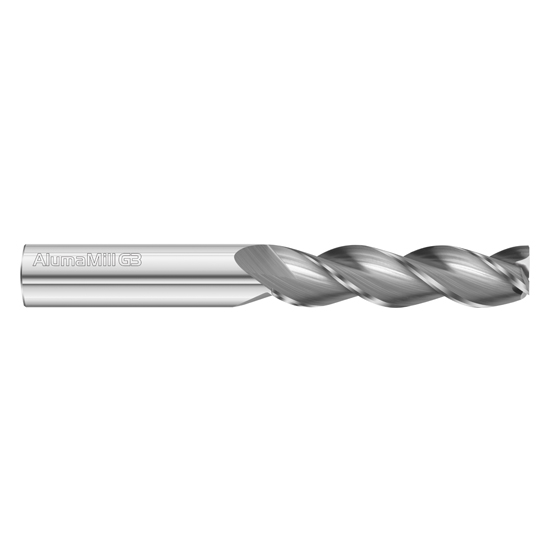

Fullerton Tool 27022 | 3/8" Diameter x 3/8" Shank x 2" LOC x 4" OAL 3 Flute Uncoated Solid Carbide Square End Mill

$91.52 $57.66
(You save $33.86)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Number of Flutes:
3
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2"
Length of Cut (mm):
50.80mm
Shank Diameter (inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
25003896
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 27022 | 3/8" Diameter x 3/8" Shank x 2" LOC x 4" OAL 3 Flute Uncoated Solid Carbide Square End Mill

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3750"
Cutting Diameter (mm) 9.53mm
Cutting Diameter (Inch) 3/8"
Cutting Flute Length (Decimal Inch) 2.0000"
Cutting Flute Length (mm) 50.80mm
Cutting Flute Length (Inch) 2"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (mm) 9.53mm
Shank Diameter (Inch) 3/8"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 37.5
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
