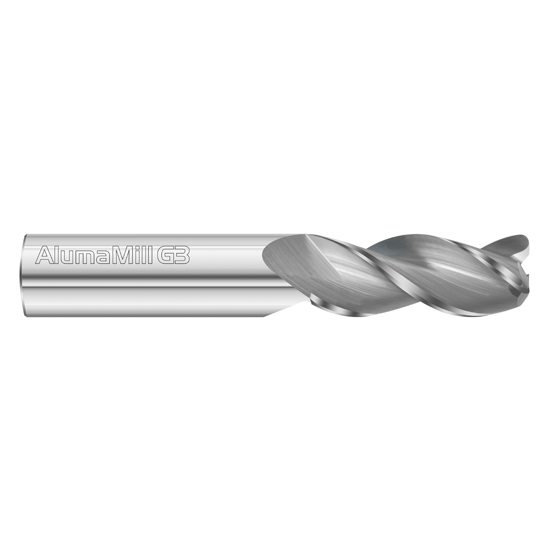

Fullerton Tool 27347 | 3/8" Diameter x 3/8" Shank x 1/2" LOC x 2-1/2" OAL 3 Flute Uncoated Solid Carbide Radius End Mill

$51.41 $32.39
(You save $19.02)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
25002025
UPC:
Weight:
0.22 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 27347 | 3/8" Diameter x 3/8" Shank x 1/2" LOC x 2-1/2" OAL 3 Flute Uncoated Solid Carbide Radius End Mill

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3750"
Cutting Diameter (mm) 9.53mm
Cutting Diameter (Inch) 3/8"
Cutting Flute Length (Decimal Inch) 0.5000"
Cutting Flute Length (mm) 12.70mm
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (mm) 9.53mm
Shank Diameter (Inch) 3/8"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 37.5
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0300"
Radius (mm) 0.76mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
