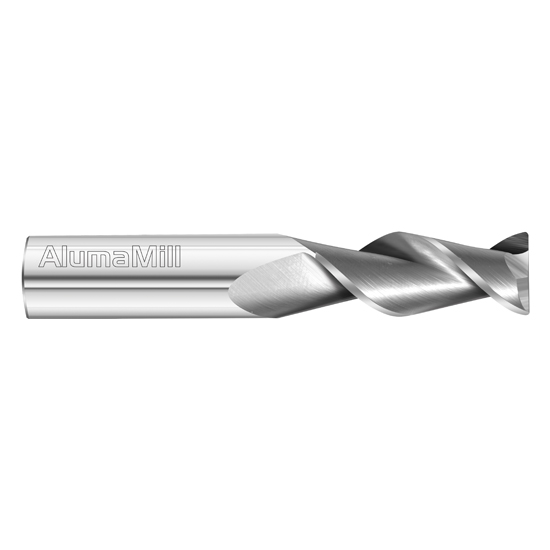

Fullerton Tool 38607 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 2 Flute Uncoated Solid Carbide Radius End Mill

About This Item

Features

• The 3825 AlumaMill is a 2-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
• Its high polish and unique cylindrical margin design produces superior wall finishes
• The 3825 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications

Cutting Diameter (Decimal Inch)	0.3750"
Cutting Diameter (mm)	9.53mm
Cutting Diameter (Inch)	3/8"
Cutting Flute Length (Decimal Inch)	1"
Cutting Flute Length (mm)	25.40mm
Cutting Flute Length (Inch)	1"
Shank Diameter (Decimal Inch)	0.3750"
Shank Diameter (mm)	9.53mm
Shank Diameter (Inch)	3/8"
Overall Length (Decimal Inch)	2.5000"
Overall Length (mm)	63.50mm
Overall Length (Inch)	2-1/2"
Coating/Finish	Uncoated
Metric/Inch	Inch
Number of Flutes	2
Helix Angle (Degrees)	45
Flute Spiral Direction	Right Hand
Direction of Cut	Right Hand
Point End Type	Corner Radius
End Type Character Designation	R
Radius (Decimal Inch)	0.0450"
Radius (mm)	1.14mm
End Type	Single End
Coolant Through	Non Coolant Through
Weldon Flat	No
Length	Standard
Length Designator	SD



Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
