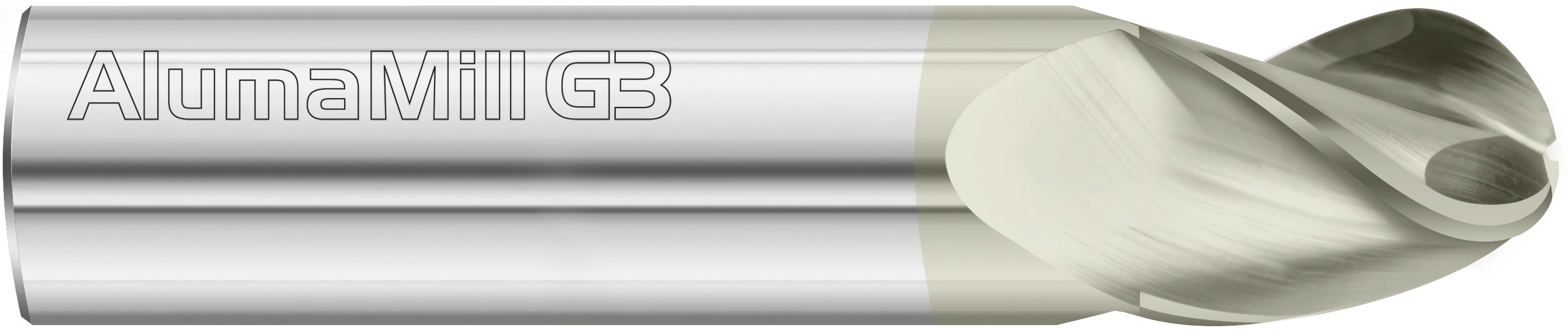

Fullerton Tool 27352 | 3/8" Diameter x 3/8" Shank x 1/2" LOC x 2-1/2" OAL 3 Flute FC5 Solid Carbide Ball End Mill

$73.08 $46.04
(You save $27.04)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Material:
Solid Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
63.50mm
Finish/Coating:
FC5
Cutting Direction:
Right
Single or Double End:
Single
Helix Angle:
37.5 Degree
Flute Direction:
Right
Application:
Aluminum & Non-Ferrous Materials
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
IsDiscontinued:
SKU:
23005254
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 27352 | 3/8" Diameter x 3/8" Shank x 1/2" LOC x 2-1/2" OAL 3 Flute FC5 Solid Carbide Ball End Mill

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Mill Diameter (Inch) 3/8"
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Inch) 3/8"
Overall Length (Inch) 2-1/2"
Mill Diameter (Decimal Inch) 0.3750"
Cutting Flute Length (Decimal Inch) 0.5000"
Shank Diameter (Decimal Inch) 0.3750"
Overall Length (Decimal Inch) 2.5000"
Mill Diameter (mm) 9.53mm
Cutting Flute Length (mm) 12.70mm
Shank Diameter (mm) 9.53mm
Overall Length (mm) 63.50mm
Finish/Coating FC5
Number of Flutes 3
Helix Angle 37.5 Degree
Flute Spiral Direction Right Hand Spiral
Cutting Direction Right Hand Cutting
Coolant Thorugh (Yes/No) No

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
