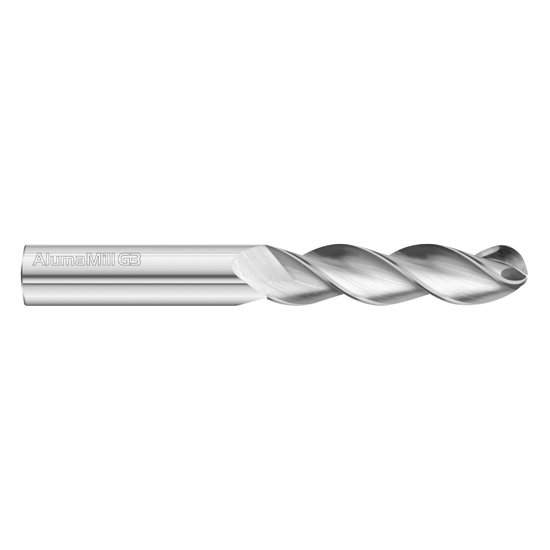

Fullerton Tool 27561 | 1/2" Diameter x 1/2" Shank x 2-1/2" LOC x 5" OAL 3 Flute Uncoated Solid Carbide Ball End Mill

SKU: 25001468 Weight: 0.35 LBS Minimum Purchase: 1 unit
UPC:
$193.30 $189.43
(You save $3.87)
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Cutting Flute Length (Decimal Inch) 2.5000"
Cutting Flute Length (mm) 63.50mm
Cutting Flute Length (Inch) 2-1/2"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 5.0000"
Overall Length (mm) 127.00mm
Overall Length (Inch) 5"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 37.5
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
